Actassi S-110 Connector RJ45 Keyst One Unshielded Cat6A Shutter

Home ProductsNetwork ConnectivityActassiS-110 Connector

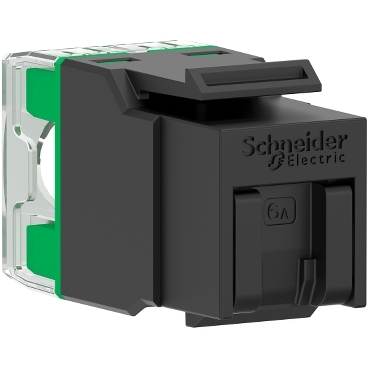

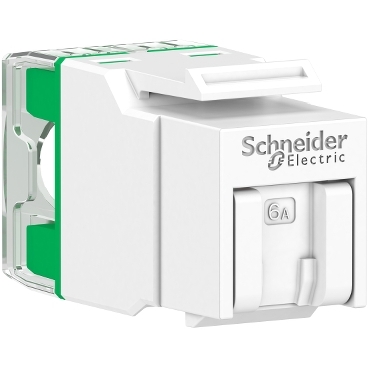

Actassi S-110 Connector RJ45 Keyst One Unshielded Cat6A Shutter | Black

Item Number: VDIB1734XUBK

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-
See all

Specifications

Design

Range

Actassi

Product or component type

RJ45 connector

Colour tint

  • connector housing: white (ABS + PC)
  • shutter: white (ABS + PC)
  • top cover: transparent (PC)
  • IDC cover: green (PC)

Colour code

TIA-568A/B

Warranty

18 months

Physical

Device presentation

two piece design

Quantity per set

set of 1

[in] rated current

1.5 A at 25 °C

Permissible voltage

1000 V AC/DC peak, between contacts

Contact resistance

20 mOhm

Insulation resistance

initial insulation resistance: > 500 MOhm at 100 V DC

Awg gauge

AWG 24...AWG 23

Mechanical durability

750 cycles

Pin number

8 pins of copper alloy and gold plated conforming to IEC 60603-7

Tool type

  • punch down tool
  • quick termination tool

Cable outer diameter

0.9...1.4 mm

Cable shielding type

UTP

Communication network category

6A

Communication network type

10GBASE-T

Communication port protocol

  • PoE 15W (Power over Ethernet)
  • PoE+ 30W (Power over Ethernet Plus)
  • PoE+ (Power over Ethernet)
  • 4PPoE 100W (Power over Ethernet)

Connections - terminals

insulation displacement contact

Transmission frequency

1...500 MHz

Type of footprint

S-110 keystone

Height

  • 0.072 ft
  • 22 mm

Length

  • 0.12 ft
  • 36 mm

Width

  • 0.052 ft
  • 16 mm

Ambient air temperature for operation

  • 14...140 °F
  • -10...60 °C

Ambient air temperature for storage

  • -40...158 °F
  • -40...70 °C

Climatic withstand

40/070/21 (21 days)

Product certifications

UL listed

Standards

  • ANSI/TIA-568-C.2
  • IEC 60603-7-5
  • ISO/IEC 11801:2011 Ed.2.2
  • AS/NZS 3080:2003
  • UL 1863

Reach free of svhc

Yes

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP1806006EN

Eu rohs directive

Compliant

Reach regulation

Free of Substances of Very High Concern above the threshold

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Others

Package 1 bare product quantity

1

Legacy weee scope

In

Package 2 bare product quantity

192

Package 3 bare product quantity

4608

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

At least in Europe

Product name

Actassi S-110

Flame retardance

UL94-V0 conforming to UL listed

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

2.200 cm

Package 1 width

10.500 cm

Package 1 length

14.500 cm

Package 1 weight

12.000 g

Unit type of package 2

S03

Number of units in package 2

192

Package 2 height

30.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

2.665 kg

Unit type of package 3

P12

Number of units in package 3

4608

Package 3 height

105.000 cm

Package 3 width

80.000 cm

Package 3 length

120.000 cm

Package 3 weight

83.965 kg

Sustainable packaging

No

Packaging made with recycled cardboard

Yes

End of life manual availability

N/A

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

18
Show all specifications
