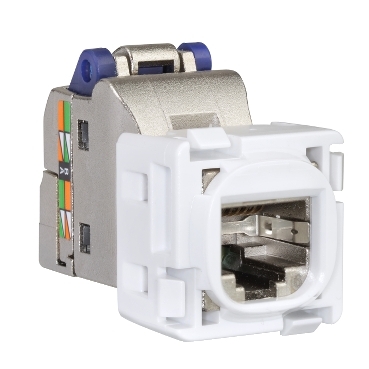

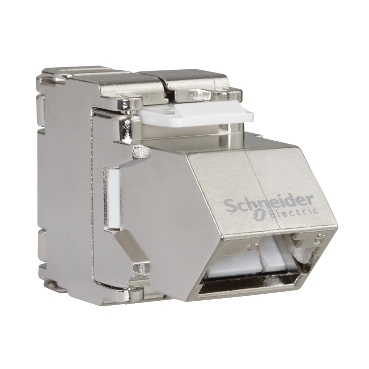

Actassi S-110 Connector RJ45 Keystone Shielded Cat 6 Angle bag x 1
Item Number: ACTRJSMA6ANSS
RJ45 jack, part of the entire Actassi range which provides a complete cabling solution. It is a shielded RJ45 jack in angle. It is a keystone RJ45 jack. Its performance are 4P PoE (PoE++) and Cat6A component level certified by third party laboratory. It is mutli-standard certified (IEC, TIA, UL). It is compatible with cables and sockets from Actassi range.
Datasheet
Close
Specifications
Design
| Range | Actassi |
|---|---|
| Product brand | Schneider Electric |
| Product or component type | RJ45 network socket |
| Colour tint |
|
| Colour code | TIA-568A/B |
| Product compatibility | RJ45 plug |
| Warranty | 18 months |
Physical
| Device presentation | two piece design |
|---|---|
| Provided equipment | without shutter |
| Type of packing | plastic bag and carton |
| Quantity per set | set of 1 |
| [in] rated current | 1.5 A at 25 °C |
| Permissible voltage | 1000 V AC/DC peak, between contacts |
| Contact resistance | 20 mOhm |
| Insulation resistance | initial insulation resistance: >= 500 MOhm at 100 V DC |
| Connector type | RJ45 |
| Awg gauge | AWG 23...AWG 24 |
| Pin number | 8 pins of copper alloy and gold plated conforming to IEC 60603-7 |
| Protection type | zinc nickel plating: 360° contact |
| Tool type |
|
| Cable outer diameter | 0.9...1.4 mm |
| Cable shielding type | STP |
| Communication network category | 6A |
| Communication network type | 10GBASE-T |
| Communication port protocol |
|
| Connections - terminals | IDC toolless |
| Type of footprint | S-110 keystone |
| Height | 22 mm |
| Width | 16 mm |
| Ambient air temperature for operation | -10...60 °C |
| Ambient air temperature for storage | -20...70 °C |
| Relative humidity | 0...93 % |
| Climatic withstand | 40/070/21 (21 days) |
| Product certifications |
|
| Standards |
|
| Reach free of svhc | Yes |
| Toxic heavy metal free | Yes |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Eu rohs directive | Compliant |
Material
| Material |
|
|---|
