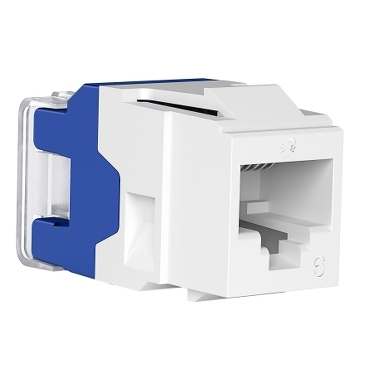

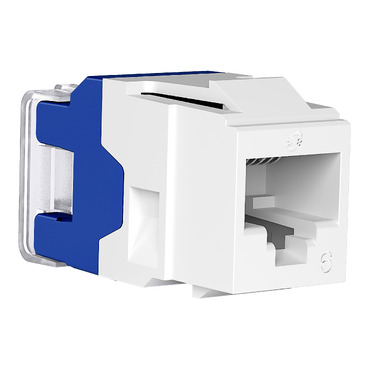

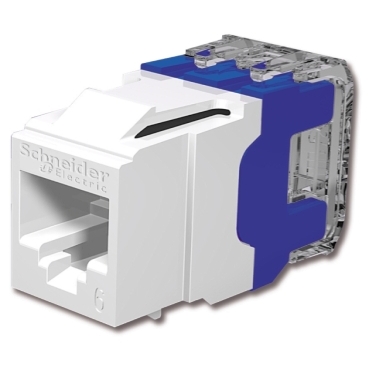

Actassi S-110 Connector RJ45 Keystone Unshielded Cat 6 bag x 1

Home ProductsNetwork ConnectivityActassiS-110 Connector

Actassi S-110 Connector RJ45 Keystone Unshielded Cat 6 bag x 1 | White Electric

Item Number: VDIB17766UWE

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-
See all

Specifications

Design

Range

Actassi

Product or component type

RJ45 network socket

Colour tint

  • stuffer cap: transparent (ABS + PC)
  • IDC cover: blue (ABS + PC)
  • connector housing: white (ABS + PC)

Colour code

568 A/B

Product compatibility

RJ45 plug

Warranty

18 months

Physical

Device presentation

two piece design

Quantity per set

set of 1

[in] rated current

1.5 A at 25 °C

Permissible voltage

1000 V AC/DC peak, between contacts

Contact resistance

20 mOhm

Insulation resistance

initial insulation resistance: >= 500 MOhm at 100 V DC

Awg gauge

AWG 24...AWG 23

Mechanical durability

750 cycles

Coupling attenuation

  • >= 35 dB at 30-100 MHz
  • >= 75 - 20 x log(f) dB at 100-1000 MHz

Pin number

8 pins of copper alloy and gold plated conforming to IEC 60603-7

Pulling force

50 N during 60 s

Transverse conversion loss

  • >= 50 dB
  • >= 68 - 20 x log(f) dB at 1-250000 kHz

Tool type

  • punch down tool
  • quick termination tool

Cable outer diameter

  • 0.0003...0.0036 ft
  • 0.9...1.1 mm

Cable shielding type

UTP

Communication network category

6

Communication network type

1000BASE-T

Communication port protocol

  • VoIP (Voice IP)
  • PoE+ (Power over Ethernet)

Transmission frequency

0...250 MHz

Type of footprint

S-110 keystone

Height

  • 0.072 ft
  • 22 mm

Length

  • 0.12 ft
  • 36 mm

Width

  • 0.052 ft
  • 16 mm

Ambient air temperature for operation

  • -40...158 °F
  • -40...70 °C

Climatic withstand

40/070/21 (21 days)

Reach free of svhc

Yes

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

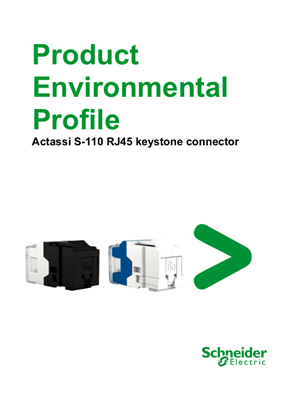

Environmental disclosure

ENVPEP081011EN

Eu rohs directive

Compliant

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Others

Legacy weee scope

In

Package 1 bare product quantity

1

At least in Europe

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Targeted region

  • Europe
  • Asia Pacific.
  • North America.

Flame retardance

UL94-V0 conforming to UL listed

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

3 cm

Package 1 width

3 cm

Package 1 length

2 cm

Package 1 weight

0.008 kg

Sustainable packaging

No

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

18
