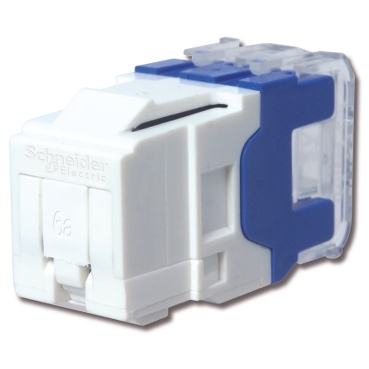

Actassi S-110 Connector RJ45 Keystone Unshielded Cat6A Shuttered bag x 1

Home ProductsNetwork ConnectivityActassiS-110 Connector

Actassi S-110 Connector RJ45 Keystone Unshielded Cat6A Shuttered bag x 1 | White Electric

Item Number: VDIB1774XUWE

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Actassi

Product or component type

RJ45 network socket

Colour tint

  • stuffer cap: transparent (ABS + PC)
  • IDC cover: blue (ABS + PC)
  • connector housing: white (ABS + PC)
  • shutter: white (ABS + PC)

Colour code

568 A/B

Product compatibility

RJ45 plug

Warranty

18 months

Physical

Device presentation

  • integrated shutter
  • two piece design

Quantity per set

set of 1

[in] rated current

1.5 A at 25 °C

Permissible voltage

1000 V AC/DC peak, between contacts

Insulation resistance

initial insulation resistance: >= 500 MOhm at 100 V DC

Awg gauge

AWG 24...AWG 23

Mechanical durability

750 cycles

Coupling attenuation

  • >= 35 dB at 30-100 MHz
  • >= 75 - 20 x log(f) dB at 100-1000 MHz

Pin number

8 pins of copper alloy and gold plated conforming to IEC 60603-7

Pulling force

50 N during 60 s

Transverse conversion loss

  • >= 50 dB
  • >= 68 - 20 x log(f) dB at 1-500000 kHz

Tool type

  • punch down tool
  • quick termination tool

Cable outer diameter

0.9...1.1 mm

Cable shielding type

UTP

Communication network category

6A

Communication network type

10GBASE-T

Communication port protocol

  • VoIP (Voice IP)
  • PoE+ (Power over Ethernet)

Transmission frequency

0...500 MHz

Type of footprint

S-110 keystone

Height

22 mm

Length

36 mm

Width

16 mm

Ambient air temperature for operation

-40...70 °C

Climatic withstand

40/070/21 (21 days)

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP1411019EN

Eu rohs directive

Under investigation

China rohs regulation

X

Others

Legacy weee scope

In

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

At least in Europe

Package 1 bare product quantity

1

Targeted region

  • Europe
  • Asia Pacific.

Flame retardance

UL94-V0 conforming to UL listed

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

3 cm

Package 1 width

3 cm

Package 1 length

2 cm

Package 1 weight

0.008 kg

Sustainable packaging

No

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

18
