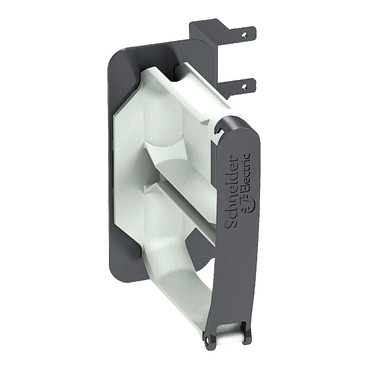

Actassi Side Cable Management Ring Vertical, 19-C, 2U

Item Number: VDIM189412

1 PCE 1

Vertical ring for vertical management of patch cords. It is 2U height vertical ring. For rack 800 x 800 mm. Can be fixed on each side of any quick fix system panel or guiding panel. Have capacity up to 48 cords.

Where To Buy

Datasheet

Download

Product Dimensions

Width<ul><li>0.36 ft</li><li>110 mm</li></ul>

Height<ul><li>1.31 ft</li><li>40 mm</li></ul>

Depth<ul><li>100 mm</li><li>0.328 ft</li></ul>

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480542572	-
80	S04	43606480542570	-

Specifications

Design

Range of product	Actassi
Product or component type	vertical ring
Colour tint	dark grey (RAL 7016) light grey (RAL 7035)
Warranty	18 months

Physical

Number of cables	48
Width	0.36 ft 110 mm
Height	1.31 ft 40 mm
Depth	100 mm 0.328 ft
Ambient air temperature for operation	-10...55 °C 14...131 °F
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1303001
Eu rohs directive	Compliant
California proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Material

Material	metal sheet: DC01 1.2 mm plastic part: PA66 GF20 plastic part: PC

Others

Legacy weee scope	Out
Package 1 bare product quantity	1
Package 2 bare product quantity	4
Average percentage of recycled plastic content	0 %
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	No
Weee applicability	Component
Weee exclusion rationale	Component not in scope – non independent function
Accessory / separate part destination	rack 800 mm wide
Additional information	openable
Number of rack unit	2U
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	5.500 cm
Package 1 width	10.500 cm
Package 1 length	14.500 cm
Package 1 weight	135.000 g
Unit type of package 2	S01
Number of units in package 2	4
Package 2 height	15.000 cm
Package 2 width	15.000 cm
Package 2 length	40.000 cm
Package 2 weight	720.000 g
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	1 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.7754716554619814
Carbon footprint of the manufacturing phase [a1 to a3]	0.8 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.0707583504897515
Carbon footprint of the distribution phase [a4]	0.1 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.0181648668178446
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0
Carbon footprint of the use phase [b2, b3, b4, b6]	0 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.27460226698030266
Carbon footprint of the end-of-life phase [c1 to c4]	0.3 kg CO2 eq.
Pvc free	No
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	1.1389971397498801
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
Pvc free	No
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18
