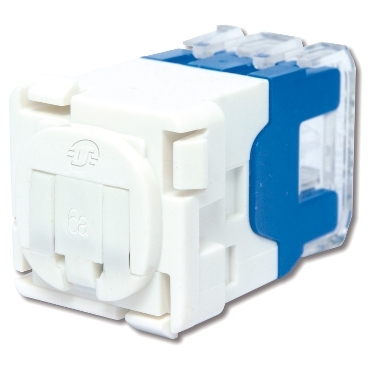

Actassi UTP 30 Mech Non-Shutter Modular Jack Category6A

Home ProductsNetwork ConnectivityActassiUTP 30 Mech Non-Shutter Modular Jack

Actassi UTP 30 Mech Non-Shutter Modular Jack Category6A | White Electric

Item Number: VDIB1775XUWE

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Actassi

Product brand

Schneider Electric

Product or component type

30Mech modular jack

Colour tint

white

Colour code

TIA-568A/B

Product compatibility

RJ45 plug

Warranty

18 months

Physical

Provided equipment

without shutter

Type of packing

plastic bag and carton

Quantity per set

set of 1

[in] rated current

1.5 A at 25 °C

Permissible voltage

1000 V AC/DC peak, between contacts

Contact resistance

20 mOhm

Insulation resistance

>= 500 MOhm

Connector type

RJ45

Tool type

  • punch down tool
  • quick termination tool

Cable outer diameter

0.7...1.4 mm

Cable shielding type

UTP

Communication network category

6A

Communication network type

10GBASE-T

Type of footprint

S-110 30 mech

Ambient air temperature for operation

-10...60 °C

Ambient air temperature for storage

-20...70 °C

Climatic withstand

40/070/21 (21 days)

Product certifications

  • FCC part 68 F
  • IEC 60603-7

Standards

  • IEC 11801 class E
  • TIA/EIA 568 B
  • NZS 3080:2003

Eu rohs directive

Compliant

Others

Legacy weee scope

In

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

At least in Europe

Package 1 bare product quantity

1

Targeted region

Asia Pacific.

Flame retardance

UL94-V0 conforming to UL listed

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

3 cm

Package 1 width

3 cm

Package 1 length

2 cm

Package 1 weight

0.01 kg

Sustainable packaging

No

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

18
