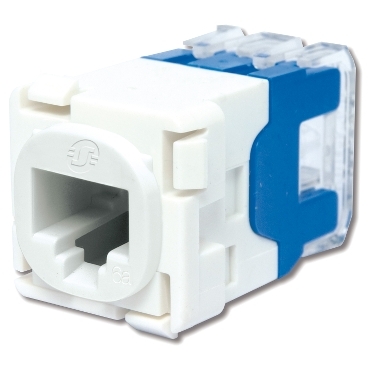

Actassi UTP 30 Mech PlanuShut Modular Jack Category6A | White Electric
Item Number: VDIB1773XUWE
Datasheet
Close
Specifications
Design
| Range | Actassi |
|---|---|
| Product brand | Schneider Electric |
| Product or component type | 30Mech modular jack |
| Colour tint | white |
| Colour code | TIA-568A/B |
| Product compatibility | RJ45 plug |
| Warranty | 18 months |
Physical
| Provided equipment | with shutter |
|---|---|
| Type of packing | plastic bag and carton |
| Quantity per set | set of 1 |
| [in] rated current | 1.5 A at 25 °C |
| Permissible voltage | 1000 V AC/DC peak, between contacts |
| Contact resistance | 20 mOhm |
| Insulation resistance | >= 500 MOhm |
| Connector type | RJ45 |
| Tool type |
|
| Cable outer diameter | 0.7...1.4 mm |
| Cable shielding type | UTP |
| Communication network category | 6A |
| Communication network type | 10GBASE-T |
| Type of footprint | S-110 30 mech |
| Ambient air temperature for operation | -10...60 °C |
| Ambient air temperature for storage | -20...70 °C |
| Climatic withstand | 40/070/21 (21 days) |
| Product certifications |
|
| Standards |
|
| Toxic heavy metal free | Yes |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| China rohs regulation | X |
| Eu rohs directive | Compliant |
