Specifications
Design
Range
Actassi

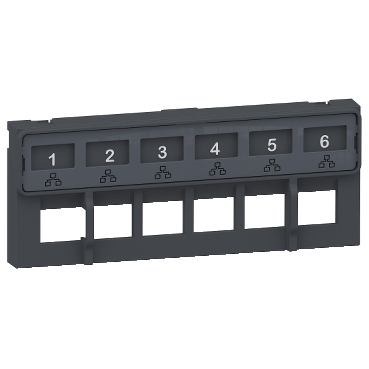

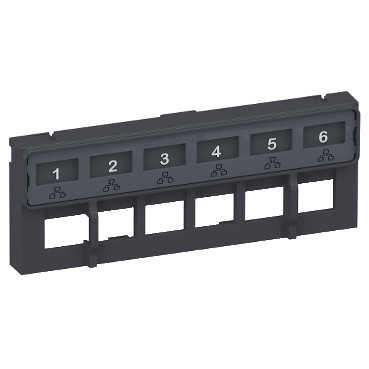

Product or component type
fibre front cover
Product compatibility
LC duplex adaptor
Product destination
patch panel
Physical
Quantity per set
4
Range compatibility
- Actassi Actassi FLEX fibre cassette
- Actassi Actassi FLEX fibre patch panel
Integrated connection type
duplex LC, multi mode transmission mode
Type of installation
indoor
Height
44.45 mm
Length
109.5 mm
Width
9.45 mm
Ambient air temperature for operation
0...55 °C
Ambient air temperature for storage
-20...65 °C
Product certifications
UL
Toxic heavy metal free
Yes
Mercury free
Yes
Rohs exemption information
Yes
Environmental disclosure
ENVPEP090710EN
Eu rohs directive
Pro-active compliance (Product out of EU RoHS legal scope)
China rohs regulation
X
Material
Material
plastic RAL 7016
Others
Legacy weee scope
Out
Package 1 bare product quantity
1
At least in Europe
Weee label
No
Product name
Actassi FLEX
Number of rack unit
1U
Number of port
12
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
7 cm
Package 1 width
11.6 cm
Package 1 length
16.1 cm
Package 1 weight
175 g
Sustainable packaging
No
Warranty (in months)
18
Documents & downloads
hide showFilter items
-
All
-

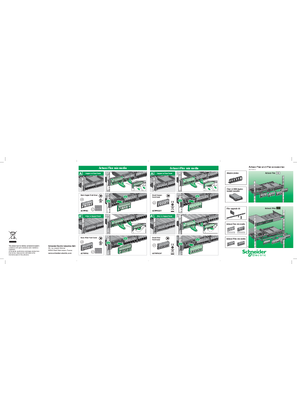

Installation Instruction
-
