Specifications
Design
Range of product
C-Bus
Range
C-Bus
Product brand
Clipsal
Product or component type

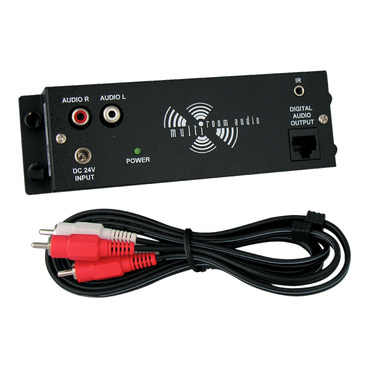

audio distribution hub
Device application
media device support
Physical
Connector type
DIN|RCA
Width
165 mm
Height
40 mm
Depth
50 mm
Eu rohs directive
Pro-active compliance (Product out of EU RoHS legal scope)
Others
Package 1 bare product quantity
1
[us] rated supply voltage
27 V DC
Maximum supply current
0.5 A
Number of inputs
1
Number of outputs
1
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
5.5 cm
Package 1 width
8 cm
Package 1 length
17 cm
Package 1 weight
0.28 kg
Documents & downloads
hide showFilter items
-
All
-
Product Brochures
-
CAD Files and Packs
-
Technical Data Catalogues
-
Installation Instruction
-
Specification Guide
-
Application Notes
ZIP
Installation Instructions - 560011, 560125D, 560125R, 560884 Multi Room Audio System
VERSION
1.0
DATE
29 Sep 2023
REVISION
1.0
DOWNLOAD (ZIP) 3.8 MB
ZIP

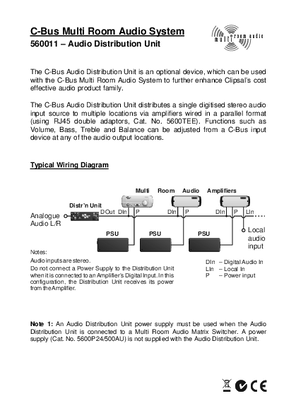

Installation Instructions - F1914 - C-Bus Multi Room Audio System 560011 – Audio Distribution Unit, 10319801
VERSION
1.0
DATE
29 Sep 2023
REVISION
1.0
DOWNLOAD (ZIP) 131.5 KB
ZIP
Installation Instructions - F1911/03 - C-Bus Multi Room Audio Matrix Switcher and System, 10319732
VERSION
1.0
DATE
29 Sep 2023
REVISION
1.0
DOWNLOAD (ZIP) 2.2 MB
