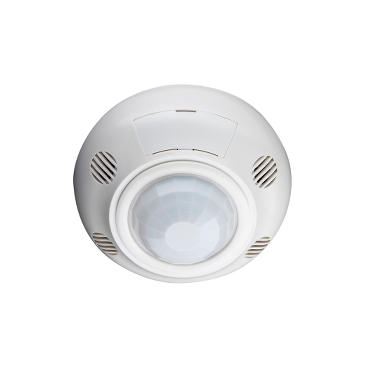

C-Bus PIR Motion Detector Ceiling Mount, Dual Technology, 360 Degree

Home ProductsSmart HomeC-BusPIR Motion Detector

C-Bus PIR Motion Detector Ceiling Mount, Dual Technology, 360 Degree

Item Number: 752/CD

Occupancy sensor with ultrasonic and passive infrared technology, integrated timer and light level sensor. The device switches lights on upon movement detection for a defined time period depending on the ambient light level. Ideal for indoor use in business and office settings. Detection range of 186 square metres (dual technology). Timer range is 15s to 30min. 752 series. Note: Requires installation by an appropriately licenced electrician.

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

C-Bus

Range

C-Bus

Product brand

Clipsal

Physical

Output current

<= 280 mA

Reach free of svhc

Yes

Rohs exemption information

Yes

Eu rohs directive

Compliant

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Others

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

At least in Europe

Package 1 bare product quantity

1

Legacy weee scope

In

[us] rated supply voltage

24 V DC

Network type

DC

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

9.0 cm

Package 1 width

13.0 cm

Package 1 length

13.0 cm

Package 1 weight

250.0 g

Sustainable packaging

No

Removable battery

N/A

Packaging made with recycled cardboard

Yes

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

18
