C-Bus Polyurethane spacer Pack of 60, Enabling to use 5031NMML/5031NMS mechanism for switch plates such as Standard Saturn and Zen
Item Number: 5031NMSPACER
Datasheet
Close
Specifications
Design
Range of product
C-Bus
Product brand
Clipsal
Product or component type
spacer
Physical
Mercury free
Yes
Rohs exemption information
Yes
Environmental disclosure
ENVPEP120702EN
Eu rohs directive
Compliant with Exemptions
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Material
Material
polyurethane
Others
Legacy weee scope
In
Package 1 bare product quantity
1
Outside of Europe
Weee label
N/A
Diameter
12.7 mm
Thickness
3.5...3.5 mm
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 weight
0.120 kg
Sustainable packaging
No
End of life manual availability
ENVEOLI1207002EN
Warranty (in months)
18
Documents & downloads
hide showFilter items
-
All
-
Product Brochures
-
Technical Data Catalogues
-
End of Life Manual
-
Environmental Disclosure
-
Installation Instruction
-
Declaration of Conformity (Sustainability)
Important: Some software files may need a mySchneider or Club login to download.
ZIP
Installation Instructions - F2138 - 5031NMx Series C-Bus 30M Mechanism, 1036666
VERSION
1.0
DATE
29 Sep 2023
REVISION
1.0
DOWNLOAD (ZIP) 587.9 KB
ZIP

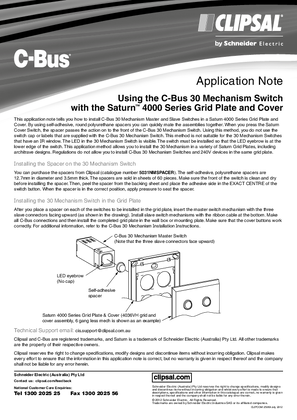

Installation Instructions - C-Bus Application Note - Using the C-Bus 30 Mechanism Switch with the Saturn4000 Series Grid Plate and Cover, 25069
VERSION
1.0
DATE
29 Sep 2023
REVISION
1.0
DOWNLOAD (ZIP) 287.6 KB
