Specifications
Design
Range of product
C-Bus
Product brand
Clipsal
Range
C-Bus

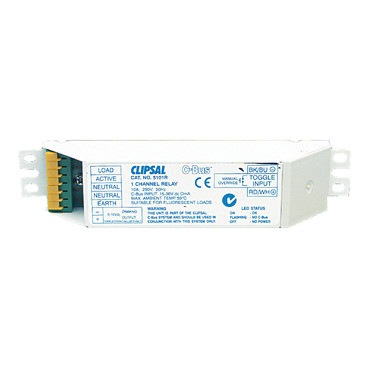

Product or component type
relay
Device application
control
Physical
Connector type
screw terminals
Number of channels
1
Width
198 mm
Height
39 mm
Depth
42 mm
Ip degree of protection
IP20
Eu rohs directive
Not applicable, out of EU RoHS legal scope
Eu rohs directive
Not Applicable/Out of Scope
Others
Legacy weee scope
In
Package 1 bare product quantity
1
At least in Europe
Warranty duration(in months) bmecat
18
Weee label
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Maximum switching current
10 A
Operational power in w
2300 W
[us] rated supply voltage
15...36 V DC
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
3.5 cm
Package 1 width
5 cm
Package 1 length
15 cm
Package 1 weight
0.393 kg
Sustainable packaging
No
Weee label
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)
18
Documents & downloads
Filter items
-
All
-
CAD Files and Packs
-
Product Brochures
-
Technical Data Catalogues
-

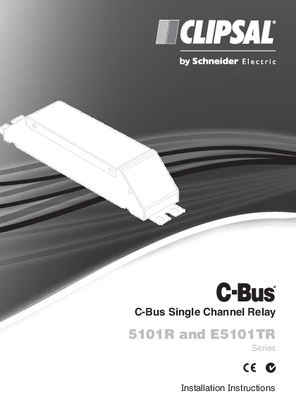

Installation Instruction
-
