Specifications
Design
Range of product
C-Bus
Product brand
Clipsal
Range
C-Bus
Physical
Width
42 mm
Height
39 mm
Depth
248 mm
Eu rohs directive
Pro-active compliance (Product out of EU RoHS legal scope)
Eu rohs directive
Compliant
Others
Legacy weee scope
In
Weee label
N/A
Warranty duration(in months) bmecat
18
Outside of Europe
Package 1 bare product quantity
1
[us] rated supply voltage
15...36 V DC
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
3.5 cm
Package 1 width
5 cm
Package 1 length
15 cm
Package 1 weight
0.91 kg
Sustainable packaging
No
Warranty (in months)
18
Documents & downloads
Filter items
-
All
-
CAD Files and Packs
-
Product Brochures
-
Technical Data Catalogues
-

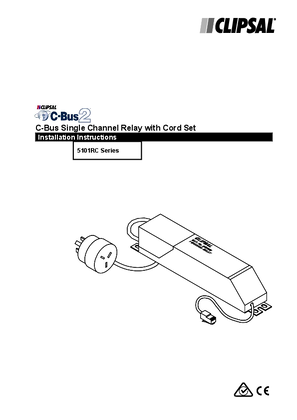

Installation Instruction
-
