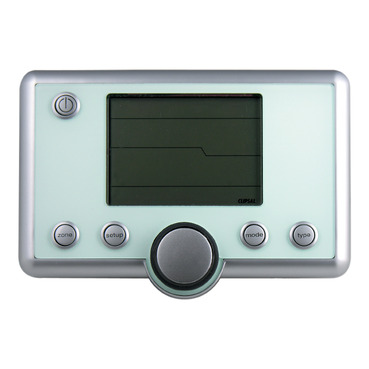

C-Bus Thermostat 4 zone, with 5 relays, Saturn style fascia | White Electric
Item Number: 5070THPRPG-WE
Datasheet
Close
Specifications
Design
Range of product
C-Bus
Range
C-Bus
Product brand
Clipsal
Product or component type
thermostat
Device application
temperature control
Physical
Ambient air temperature for operation
-10...50 °C
Eu rohs directive
Pro-active compliance (Product out of EU RoHS legal scope)
Others
Legacy weee scope
In
Package 1 bare product quantity
1
Weee label
N/A
Outside of Europe
[us] rated supply voltage
15...36 V DC
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 weight
0.5 kg
Sustainable packaging
No
Warranty (in months)
18
