Zen White 1 PCE 1

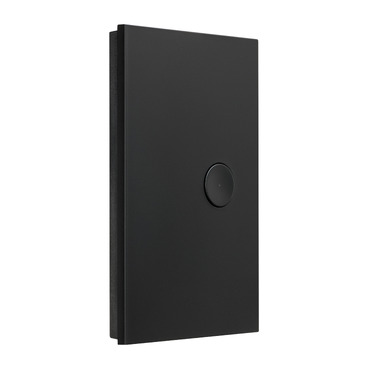

Zen Black 1 PCE 1

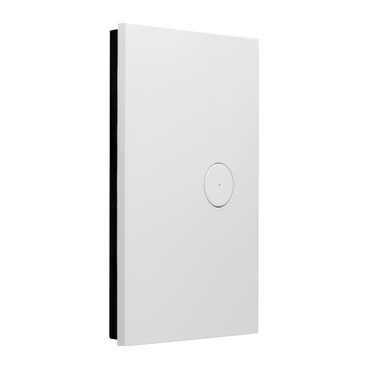

C-Bus Wall Plate Saturn Zen Key Input Unit, 1 key, A Series | Zen White

Zen White 1 PCE 1
Zen Black 1 PCE 1

Width75 mm

Height118 mm

Depth25 mm

See full specifications

Qty	UoM	EAN	Colour
			-
			-
			-

Qty	UoM	EAN	Colour
1	PCE	9311554763015	ZW
10	CAR	49311554763013	ZW
1	PCE	9311554763022	ZB
10	CAR	49311554763020	ZB

Specifications

Product brand	Clipsal
Range	C-Bus
Product or component type	switch
Device application	control

Device presentation	basic element with full cover plate
Number of gangs	1 gang
Control type	push-button
Provided equipment	fascia plate body switch push-button cap
[ue] rated operational voltage	15...36 V DC
[in] rated current	22 mA
Communication network type	C-Bus
Switch function	load switching dimmer time switch function scene control roller shutter bell push switch curtain
Local signalling	LED (blue/orange) for status
Connections - terminals	terminal block - 0.2-1.3 mm² (24 AWG...16 AWG)
Mounting support	wall box
Fixing center	84 mm
Width	75 mm
Height	118 mm
Depth	25 mm
Net weight	54 g
Ambient air temperature for operation	0...45 °C
Relative humidity	10...95 % non-condensing
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2403010EN
Eu rohs directive	Compliant

Material	plastic

Package 1 bare product quantity	1
Legacy weee scope	In
Average percentage of recycled plastic content	0 %
	Outside of Europe
Warranty duration(in months) bmecat	18
Weee label	N/A
Weee applicability	Finished product
Product name	C-Bus Saturn Zen A Series
Input impedance	50 kOhm at 1-1 kHz
Isolation voltage	3.75 kV from C-Bus to mains
Starting time	5 s
Main colour tint	zen white
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	7 cm
Package 1 width	10.7 cm
Package 1 length	15 cm
Package 1 weight	213 g
Unit type of package 2	CAR
Number of units in package 2	10
Package 2 height	17.5 cm
Package 2 width	28 cm
Package 2 length	35 cm
Package 2 weight	2.014 kg
Unit type of package 3	PAL
Number of units in package 3	280
Package 3 height	122.5 cm
Package 3 width	60 cm
Package 3 length	80 cm
Package 3 weight	66.395 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	3 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	2.833225727330377
Carbon footprint of the manufacturing phase [a1 to a3]	3 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.0277839214168648
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0
Carbon footprint of the use phase [b2, b3, b4, b6]	0 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.1710645095389011
Carbon footprint of the end-of-life phase [c1 to c4]	0.2 kg CO2 eq.
Pvc free	No
Silicone-free	No
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	3.032074158286143
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
Pvc free	No
Silicone-free	No
End of life manual availability	ENVEOLI2403010EN
Take-back	No
Warranty (in months)	18

Documents & downloads

All
Product Brochures
CAD Files and Packs
Technical Data Catalogues
End of Life Manual
Environmental Disclosure
Installation Instruction
Operating Manuals
Specification Guide
Application Notes
Declaration of Conformity
Declaration of Conformity (Sustainability)
Software - Release

Important: Some software files may need a mySchneider or Club login to download.

Colour Zen White (ZW)

C-Bus Wall Plate Saturn Zen Key Input Unit, 1 key, A Series | Zen White

Item Number: R5041NL-ZW

Colour Zen White (ZW)

Datasheet

Product Dimensions

Barcode

Specifications

Documents & downloads

All

Product Brochures

CAD Files and Packs

Technical Data Catalogues

End of Life Manual

Environmental Disclosure

Installation Instruction

Operating Manuals

Specification Guide

Application Notes

Declaration of Conformity

Declaration of Conformity (Sustainability)

Software - Release

998-20872742_SpaceLogic C-Bus Commercial Brochure

C-Bus - Home Control to enhance your lifestyle, 122851

C-Bus Energy Management & Control System, The ultimate control solution

Brochure for Saturn Zen C-Bus Series

Revit Pack C-Bus Wired

Revit Pack C-Bus Wireless

C-Bus Product Overview Catalogue, 22762

C-BUS KEY - SMART SWITCH & CONTROLLER

C-Bus, LCD Key Input - Product End of Life Instructions

C-Bus, Saturn Zen, Key Switch - Product End of Life Instructions

LCD Key Input - Product Environmental Profile

C-Bus- Saturn Zen Wall Switches-Installation Instructions (EN)

C-Bus C-Gate 3 Linux Release Notes V3.7.0

C-Bus C-Gate 3 Windows Installer, Release Notes V3.7.0

C-Bus Home Gate Release Notes V4.15.1

C-Bus Home Gate Release Notes V4.15.0

C-Bus C-Gate 2 Linux Package Release Notes V2.11.11

C-Bus C-Gate 2 Windows Installer Release Notes V2.11.11

C-Bus Technical Specification - Commercial Applications

C-Bus Technical Specification MDU Applications

C-Bus_System_Application_Notes

SpaceLogic C-Bus Home Automation System, PRC-515, Declaration of Conformity

R5041NL-ZB EU RoHS Directive

R5041NL-ZB EU RoHS Directive

R5041NL-ZB EU RoHS Directive

R5041NL-ZB EU RoHS Directive

R5041NL-ZB REACh Regulation

R5041NL-ZB REACh Regulation

R5041NL-ZB REACh Regulation

R5041NL-ZB REACh Regulation

R5041NL-ZW EU RoHS Directive

R5041NL-ZW EU RoHS Directive

R5041NL-ZW EU RoHS Directive

R5041NL-ZW EU RoHS Directive

R5041NL-ZW REACh Regulation

R5041NL-ZW REACh Regulation

R5041NL-ZW REACh Regulation

R5041NL-ZW REACh Regulation

SpaceLogic C-Bus Commission and Release Notes V2.14.0

C-Bus Software Bundle 0426

C-Bus C-Gate 3 Linux Package and Release Notes V3.7.1

Schedule Plus Release Notes V5.12.0

C-Bus C-Gate 3 Windows Installer and Release Notes V3.7.1

C-Bus Toolkit Software and Release Notes V1.19.4

C-Bus Toolkit Software and Release Notes V1.18.1

SpaceLogic, C-Bus Software Bundle 0226

Schedule Plus Software and Release Notes V5.11.0

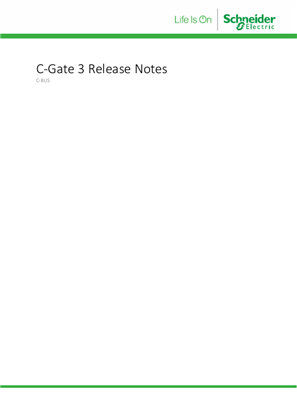

C-Bus C-Gate 3 Linux Package and Release Notes V3.7.0

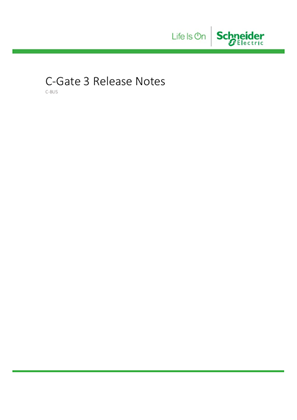

C-Bus C-Gate 3 Windows Installer and Release Notes V3.7.0
