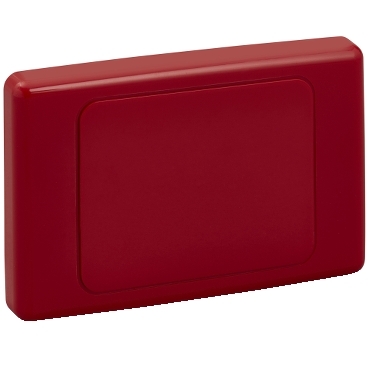

2000 Series Flush Surround and Gridplate Flush Surround and Gridplate, Blank, Vertical/Horizontal Mount, Standard Size | Red
Item Number: 2031VX-RD
Datasheet
Specifications
Design
| Range of product | Series 2000 |
|---|---|
| Product brand | Clipsal |
| Product or component type | blank cover |
| Surface finish | glossy |
Physical
| Fixing mode | by screws |
|---|---|
| Marking | without marking |
| Mounting position | horizontal and vertical |
| Fixing center | 84 mm |
| Length | 116 mm |
| Width | 76 mm |
| Depth | 13 mm |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP120506EN_V2 |
| Reach regulation | Reference contains Substances of Very High Concern above the threshold |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant By Exemption |
Material
| Material | plastic |
|---|
