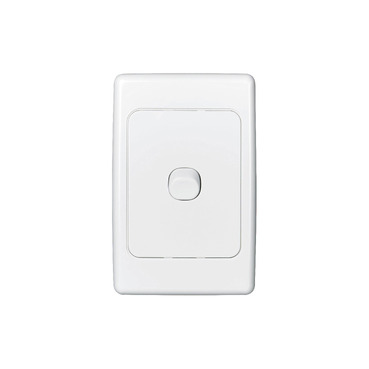

2000 Series, Flush Switch, 1 Gang, 250VAC, 10A, Standard, Vertical

2000 Series, Flush Switch, 1 Gang, 250VAC, 10A, Standard, Vertical White Electric

Item Number: 2031VA-WE

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Series 2000

Product brand

Clipsal

Surface finish

glossy

Physical

Device presentation

basic element with full cover plate and grid

Number of poles

1

Device mounting

flush

Number of rocker

1

Local signalling

without

[ue] rated operational voltage

250 V AC

Rated current

  • 10 A
  • 8 AX, fluorescent lamp

Marking

without marking

Fixing mode

by screws

Actuator

rocker

Switch function

1-pole

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP120506EN

Circularity profile

N/A

Material

Material

PC (polycarbonate)

Others

Package 1 bare product quantity

1

Package 2 bare product quantity

10

Package 3 bare product quantity

100

Package 4 bare product quantity

3200

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

2.8 cm

Package 1 width

7 cm

Package 1 length

11.4 cm

Package 1 weight

67 g

Unit type of package 2

BB1

Number of units in package 2

10

Package 2 height

12.6 cm

Package 2 width

15 cm

Package 2 length

16.4 cm

Package 2 weight

732 g

Unit type of package 3

CAR

Number of units in package 3

100

Package 3 height

27 cm

Package 3 width

35.4 cm

Package 3 length

45.1 cm

Package 3 weight

7.888 kg

Take-back

No

Take-back

No

Product contributes to saved and avoided emissions

No

Recycled metal content at cr level

0

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

3.0262938617

Global warming ; total life cycle​

3 kg CO2 eq.

Minimum percentage of recycled plastic content

0
