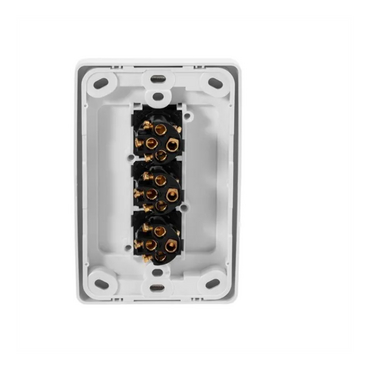

2000 Series Flush Switch 3 Gang, 250VAC, 10A, Standard, Vertical | White Electric

Item Number: 2033VA-WE

White Electric 1 PCE 1

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9311554047139	WE
10	BB1	9311554197742	WE
100	CAR	29311554132273	WE

Specifications

Design

Range of product	Series 2000
Product brand	Clipsal
Surface finish	glossy

Physical

Device presentation	basic element with full cover plate and grid
Number of poles	1
Device mounting	flush
Number of rocker	3
Local signalling	without
[ue] rated operational voltage	250 V AC
Rated current	10 A
Marking	without marking
Fixing mode	by screws
Actuator	rocker
Switch function	1-pole
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP120506EN_V2
Eu rohs directive	Compliant By Exemption

Material

Material	PC (polycarbonate)

Others

Package 1 bare product quantity	1
Package 2 bare product quantity	10
Legacy weee scope	In
Average percentage of recycled plastic content	0 %
	Outside of Europe
Warranty duration(in months) bmecat	18
Weee label	N/A
Weee applicability	Finished product
Main colour tint	white electric
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	2.4 cm
Package 1 width	7.6 cm
Package 1 length	11.6 cm
Package 1 weight	92 g
Unit type of package 2	BB1
Number of units in package 2	10
Package 2 height	12.2 cm
Package 2 width	14.1 cm
Package 2 length	16.1 cm
Package 2 weight	1 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	2 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.458939727
Carbon footprint of the manufacturing phase [a1 to a3]	0.5 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.118699516
Carbon footprint of the distribution phase [a4]	0.1 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.418746
Carbon footprint of the installation phase [a5]	0.4 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	1.37315228
Carbon footprint of the use phase [b2, b3, b4, b6]	1 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.14447884
Carbon footprint of the end-of-life phase [c1 to c4]	0.1 kg CO2 eq.
Pvc free	No
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	1.858774261
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
Pvc free	No
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18
