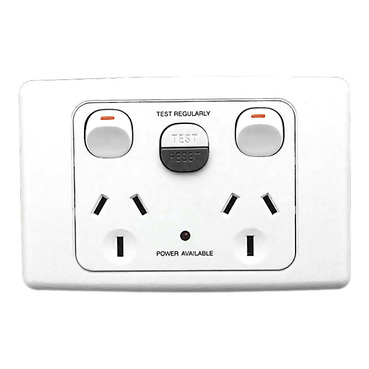

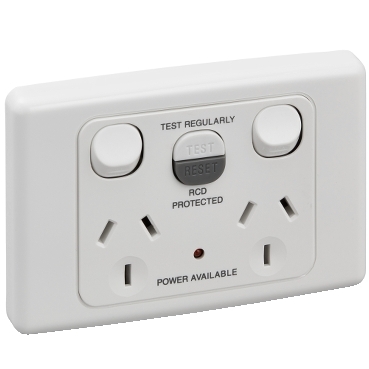

2000 Series RCD Protected Socket Outlet Double, 250V, 10A, 10mA

White Electric 1 PCE 1

Home ProductsSwitches and Sockets2000 SeriesRCD Protected Socket Outlet

2000 Series RCD Protected Socket Outlet Double, 250V, 10A, 10mA | White Electric

Item Number: 2025RC10-WE

White Electric 1 PCE 1

Datasheet

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9311554138950	WE

Specifications

Design

Range of product	Series 2000
Product or component type	switched socket
Product brand	Clipsal
Surface finish	glossy

Physical

Control type	ON/OFF button
Number of gangs	2 gangs
Pin number	3
Number of power socket outlets	2
Actuator	rocker switch
Fixing mode	by screws
Local signalling	without light indicator
Mounting position	horizontal
[ue] rated operational voltage	250 V AC
[in] rated current	10 A
Depth	47 mm
Length	116 mm
Width	76 mm
Fixing center	84 mm
Standards	AS/NZS 3100 AS/NZS 3112 AS/NZS 3133:approval number S/1
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP120506EN
Reach regulation	Reference contains Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant By Exemption

Material

Material	plastic

Others

Average percentage of recycled plastic content	0 %
Package 1 bare product quantity	1
Legacy weee scope	In
	Outside of Europe
Weee label	N/A
Weee applicability	Finished product
Warranty duration(in months) bmecat	18
Earth-leakage protection class	type I
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	4.7 cm
Package 1 width	7.6 cm
Package 1 length	11.6 cm
Package 1 weight	277 g
Total lifecycle carbon footprint	2 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	1.355829910188495
Carbon footprint of the manufacturing phase [a1 to a3]	1 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.051231720429585494
Carbon footprint of the distribution phase [a4]	0.1 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.009275934671123167
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0.1056339273201361
Carbon footprint of the use phase [b2, b3, b4, b6]	0.1 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.6756283426388777
Carbon footprint of the end-of-life phase [c1 to c4]	0.7 kg CO2 eq.
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	2.1975998352482176
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
China rohs label	5
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18

Show all specifications

Documents & downloads

All
BIM Model
CAD Files and Packs
Product Brochures
Technical Data Catalogues
Installation Instruction
Operating Manuals
Certificates (MSDS)
Declaration of Conformity
Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.

Revit Pack 2000 Series

VERSION

1.0

DATE

09 Aug 2024

REVISION

1.0

DOWNLOAD (ZIP) 456 KB

Revit Pack Standard Range

VERSION

1.0

DATE

15 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 1.7 MB

A Great Gang of Surrounds

A Great Gang of Surrounds

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 672.6 KB

2000 Series - Functionality, Flexibility and Fashion

2000 Series - Functionality, Flexibility and Fashion

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 1.5 MB

Clipsal Lifesavers in Electrical Protection - 22498

Clipsal Lifesavers in Electrical Protection - 22498

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 1.4 MB

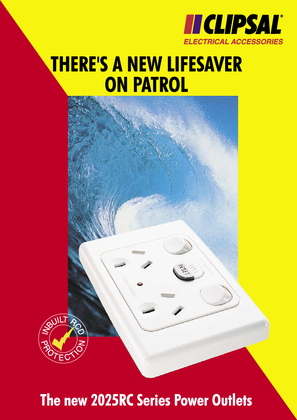

There's a new lifesaver on patrol

There's a new lifesaver on patrol

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 1.6 MB

2000 Series Technical Data, versatility and reliability, 15219

2000 Series Technical Data, versatility and reliability, 15219

VERSION

1.0

DATE

02 Aug 2022

REVISION

1.0

DOWNLOAD (ZIP) 3.5 MB

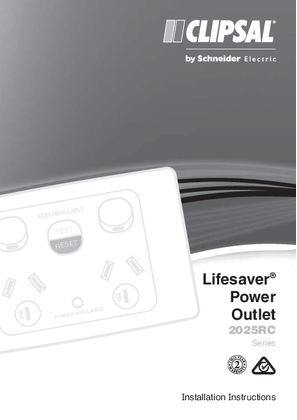

Installation Instructions - F2185 - 2025RC Series Lifesaver Power Outlet, 18921

Installation Instructions - F2185 - 2025RC Series Lifesaver Power Outlet, 18921

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 152.9 KB

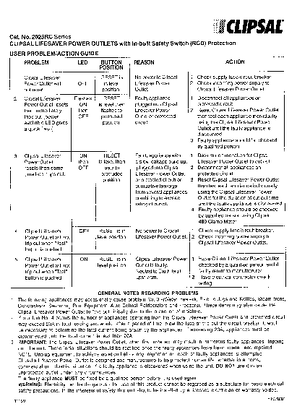

General Instructions - 2025RC Series user problem/action guide - F1070/01

General Instructions - 2025RC Series user problem/action guide - F1070/01

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 121.6 KB

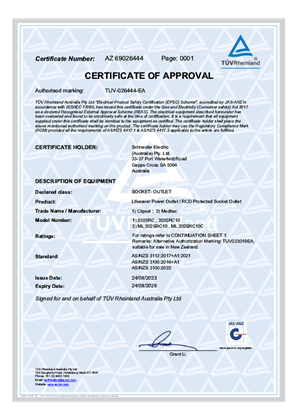

Medilec, 2025RC switched socket, Certificate, RCM, TUV Rheinland PTY. LTD
