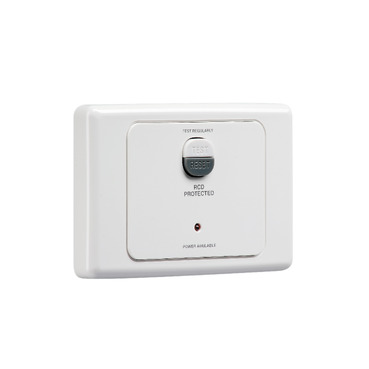

2000 Series RCD Switch Horizontal, Single Gang, Double Pole, 250V, 20A, 30mA | White Electric
Item Number: 2031RC30-WE
Datasheet
Close
Specifications
Design
| Range of product |
|
|---|---|
| Product brand | Clipsal |
Physical
| Device presentation | basic element with full cover plate |
|---|---|
| Number of poles | 2 |
| Device mounting | flush |
| Local signalling | LED |
| [ue] rated operational voltage | 250 V AC |
| Rated current | 20 A |
| Marking | without marking |
| Actuator | switch |
| Switch function | 2-pole |
| Standards | AS/NZS 3190 |
| Environmental disclosure | ENVPEP120506EN |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant By Exemption |
