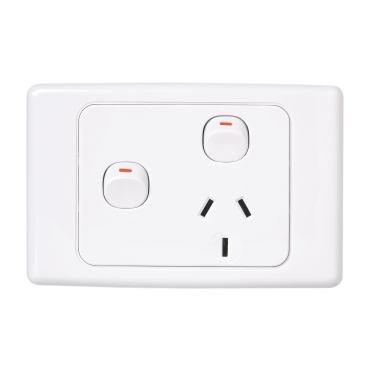

2000 Series Single Switch Socket Removable Switch, Safety Shutter | White Electric
Item Number: 2015XS-WE
Datasheet
Close
Specifications
Design
Range of product
Series 2000
Product or component type
switched socket
Product brand
Clipsal
Surface finish
glossy
Physical
Control type
ON/OFF button
Number of gangs
1 gang
Pin number
3
Number of power socket outlets
1
Actuator
- switch
- rocker
Fixing mode
by screws
Local signalling
without light indicator
Mounting position
horizontal
[ue] rated operational voltage
250 V AC
[in] rated current
10 A
Depth
12 mm
Length
116 mm
Width
76 mm
Fixing center
84 mm
Standards
- AS/NZS 3100
- AS/NZS 3112
- AS/NZS 3133:approval number S/1
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Environmental disclosure
ENVPEP120506EN
Circularity profile
N/A
Material
Material
plastic
Others
Package 1 bare product quantity
1
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
1.2 cm
Package 1 width
7.6 cm
Package 1 length
11.6 cm
Package 1 weight
0.001 kg
