Datasheet
Specifications
Design
| Range of product | Series 2000 |
|---|---|

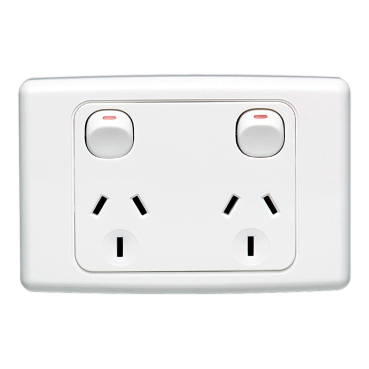

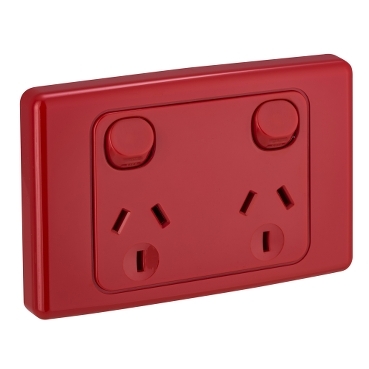

| Product or component type | switched socket |
| Product brand | Clipsal |
| Surface finish | glossy |
Physical
| Control type | ON/OFF button |
|---|---|
| Number of gangs | 2 gangs |
| Pin number | 3 |
| Number of power socket outlets | 2 |
| Actuator |
|
| Fixing mode | by screws |
| Local signalling | without light indicator |
| Mounting position | horizontal |
| [ue] rated operational voltage | 250 V AC |
| [in] rated current | 10 A |
| Depth | 13 mm |
| Length | 116 mm |
| Width | 76 mm |
| Fixing center | 84 mm |
| Product certifications | RCM |
| Standards |
|
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP120506EN_V2 |
| Reach regulation | Reference contains Substances of Very High Concern above the threshold |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant By Exemption |
Material
| Material | plastic |
|---|
Documents & downloads
-
All
-
BIM Model
-
CAD Files and Packs
-
Product Brochures
-
Technical Data Catalogues
-
Specification Guide
-
Certificates (MSDS)
-
Declaration of Conformity
-
Declaration of Conformity (Sustainability)
2025-BK EU RoHS Directive
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
2025-BK EU RoHS Directive
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
2025-BK REACh Regulation
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
2025-BK REACh Regulation
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
2025-DB EU RoHS Directive
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
2025-DB EU RoHS Directive
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
2025-DB REACh Regulation
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
2025-DB REACh Regulation
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
2025-RD EU RoHS Directive
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
2025-RD EU RoHS Directive
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
2025-RD REACh Regulation
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
2025-RD REACh Regulation
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
Frequently Asked Questions
Will the Pro series outlets fit in the Tal Plus skirting duct?
Hide ShowThe power shrouds (PLPSK) are not large enough for the back of the outlet to fit in.
