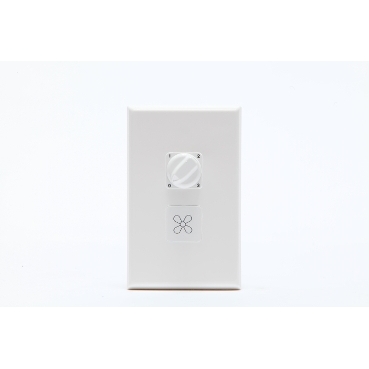

600 Series Ceiling Sweep Fan Speed Controller 3 Speed 1uF and 2uF | White
Item Number: PDL625C31WH
Datasheet
Close
Specifications
Design
| Range of product | 600 Series |
|---|---|
| Product or component type | switch |
| Colour tint | white |
| Surface finish | gloss |
Physical
| Control type | rotary knob |
|---|---|
| Installation direction | vertical |
| Length | 118 mm |
| Width | 74 mm |
| [ue] rated operational voltage | 230/240 V |
| Number of gangs | 1 gang |
| Number of poles | 1 |
| Mounting mode | surface mounted |
| Fixing center | 84 mm |
| Quantity per set | set of 1 |
| Type of packing | carton |
| Eu rohs directive | Compliant |
Material
| Material | PC (polycarbonate) |
|---|
