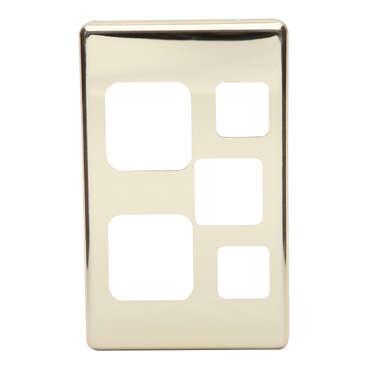

600 Series Cover Plate Double Switched Socket and Switch Vertical | Polished Brass
Item Number: PDL692XMPB
Datasheet
Close
Specifications
Design
Range of product
600 Series
Product or component type
cover plate
Colour tint
polished brass
Product destination
2 gangs vertical switched socket
Surface treatment
aluminium coated
Surface finish
polished
Sustainable offer status
Green Premium product
Physical
Quantity per set
set of 10
Type of packing
carton
Installation direction
vertical
Width
74 mm
Height
118 mm
Mounting mode
surface mounted
Ambient air temperature for operation
-10...40 °C
Eu rohs directive
Pro-active compliance (Product out of EU RoHS legal scope)
Mercury free
Yes
Rohs exemption information
Yes
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Environmental disclosure
ENVPEP120506EN
Circularity profile
N/A
Material
Material
aluminium
Others
Package 1 bare product quantity
1
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
1.2 cm
Package 1 width
7.4 cm
Package 1 length
11.8 cm
Package 1 weight
0.016 kg
