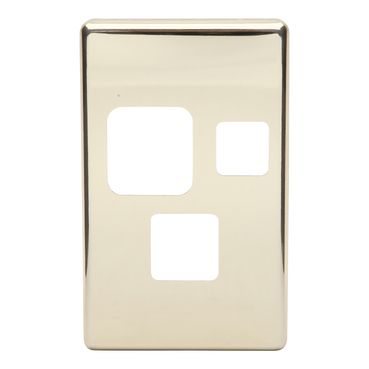

600 Series Cover Plate Switched Socket and Switch Vertical | Polished Brass
Item Number: PDL691XMPB
Datasheet
Close
Specifications
Design
| Range of product | 600 Series |
|---|---|
| Product or component type | cover plate |
| Colour tint | polished brass |
| Product destination | 1 gang vertical switched socket |
| Surface treatment | aluminium coated |
| Surface finish | polished |
Physical
| Quantity per set | set of 10 |
|---|---|
| Type of packing | carton |
| Installation direction | vertical |
| Width | 74 mm |
| Height | 118 mm |
| Mounting mode | surface mounted |
| Ambient air temperature for operation | -10...40 °C |
| Toxic heavy metal free | Yes |
| Mercury free | Yes |
| Environmental disclosure | ENVPEP120506EN |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Not Applicable/Out of Scope |
Material
| Material | aluminium |
|---|
