Specifications
Design
| Range of product | 600 Series |
|---|---|

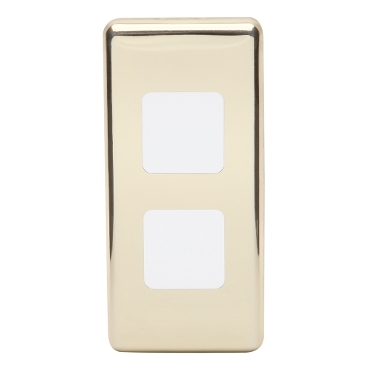

| Product or component type | cover plate |
| Colour tint | polished brass |
| Surface finish | polished |
Physical
| Installation direction |
|
|---|---|
| Length | 98 mm |
| Width | 46 mm |
| Height | 11.7 mm |
| Device mounting | surface |
| Ambient air temperature for operation | -10...40 °C |
| Quantity per set | set of 10 |
| Type of packing | carton |
| Toxic heavy metal free | Yes |
| Mercury free | Yes |
| Environmental disclosure | ENVPEP120506EN |
| Eu rohs directive | Not Applicable/Out of Scope |
Material
| Material | aluminium |
|---|
