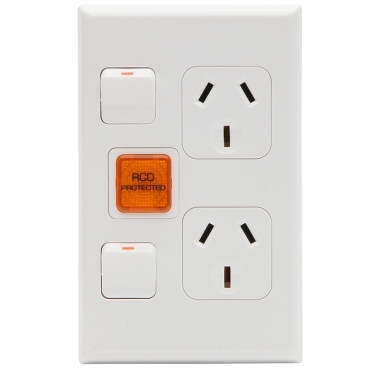

600 Series Double Switched Socket 10A + Neon 'RCD ON' Vertical | White

Item Number: PDL692PWH

White 1 PCE 1

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9416175192340	WH
5	BB1	9416175260025	WH
40	CAR	19416175192347	WH

Specifications

Design

Range of product	600 Series
Product or component type	socket-outlet
Surface finish	gloss

Physical

Control type	rocker
Installation direction	vertical
Width	74 mm
Height	118 mm
Rated current	10 A
[ue] rated operational voltage	250 V
Number of gangs	2 gangs
Mounting mode	surface mounted
Fixing center	84 mm
Ambient air temperature for operation	-10...40 °C
Quantity per set	set of 5
Type of packing	carton
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP120506EN_V2
Eu rohs directive	Compliant By Exemption

Material

Material	PC (polycarbonate)

Others

Legacy weee scope	In
Package 1 bare product quantity	1
Average percentage of recycled plastic content	0 %
	Outside of Europe
Warranty duration(in months) bmecat	18
Weee label	N/A
Weee applicability	Finished product
Network frequency	50 Hz
Cable cross section	3 x 2.5...2.5 mm²
Cut-out dimensions	50 mm
Main colour tint	white
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	2.5 cm
Package 1 width	7 cm
Package 1 length	10.5 cm
Package 1 weight	105 g
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	1 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	1.199289164490508
Carbon footprint of the manufacturing phase [a1 to a3]	1 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.013547330288135588
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.0014397062649152545
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0.025339339061186444
Carbon footprint of the use phase [b2, b3, b4, b6]	0 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.07706945169711867
Carbon footprint of the end-of-life phase [c1 to c4]	0.1 kg CO2 eq.
Pvc free	No
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	1.3166849918018635
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
Pvc free	No
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18
