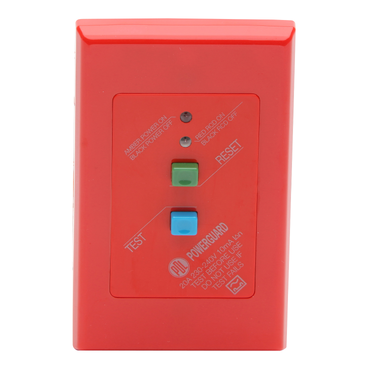

600 Series Double Switched Socket 20A, RCD, 10mA, Trip | Red

Item Number: PDL696RCD10RD

RCD flush plate. 10mA trip. PDL 600. Colour: White Rated current: 20A. Operating voltage 240V a.c. 50Hz Note: Requires installation by an appropriately licenced electrician.

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-
See all

Specifications

Design

Range of product

600 Series

Product or component type

residual current device

Colour tint

white

Surface finish

gloss

Physical

Control type

push-button

Installation direction

vertical

Width

74 mm

Height

118 mm

Rated current

20 A

[ue] rated operational voltage

230/240 V

Number of poles

2

Mounting mode

surface mounted

Fixing center

84 mm

Quantity per set

set of 1

Type of packing

carton

Mercury free

Yes

Rohs exemption information

Yes

Eu rohs directive

Compliant with Exemptions

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Material

Material

PC (polycarbonate)

Others

Legacy weee scope

In

Outside of Europe

Average percentage of recycled plastic content

0 %

Package 1 bare product quantity

1

Weee label

N/A

Weee applicability

Finished product

Network frequency

50 Hz

Network number of phases

1 phase

Cable cross section

3 x 2.5...2.5 mm²

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

7.0 cm

Package 1 width

7.7 cm

Package 1 length

11.8 cm

Package 1 weight

181.0 g

Total lifecycle carbon footprint

1 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

1.0696094322

Carbon footprint of the manufacturing phase [a1 to a3]

1 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.0233535923

Carbon footprint of the distribution phase [a4]

0 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.0526076787

Carbon footprint of the installation phase [a5]

0.1 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

0.1078699685

Carbon footprint of the use phase [b2, b3, b4, b6]

0.1 kg CO2 eq.

Sustainable packaging

No

Carbon footprint of the end-of-life phase [c1 to c4]

0.0215569499

Carbon footprint of the end-of-life phase [c1 to c4]

0 kg CO2 eq.

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

1.2749976216

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

Take-back

No

Warranty (in months)

18
