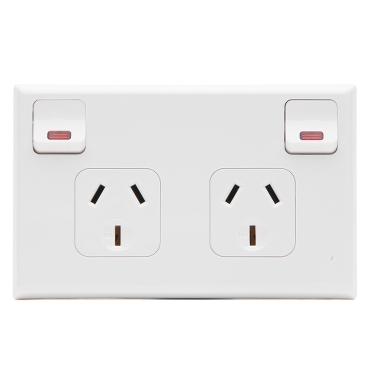

600 Series Double Switched Socket Neon ON Indicator, 10A, 250V | White
Item Number: PDL695NWH
Datasheet
Close
Specifications
Design
Range of product
600 Series
Product or component type
switched socket
Colour tint
white
Surface finish
gloss
Sustainable offer status
Green Premium product
Physical
Control type
rocker
Installation direction
horizontal
Width
118 mm
Height
74 mm
[ue] rated operational voltage
230/240 V 50 Hz
Device mounting
surface
Number of gangs
2 gangs
Fixing center
84 mm
Ambient air temperature for operation
-10...40 °C
Quantity per set
set of 5
Type of packing
carton
Eu rohs directive
Compliant with Exemptions
Mercury free
Yes
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Rohs exemption information
Yes
Environmental disclosure
ENVPEP120506EN
Circularity profile
N/A
Material
Material
PC (polycarbonate)
Others
Package 1 bare product quantity
1
Cable cross section
3 x 2.5...2.5 mm²
Cut-out dimensions
50 mm
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
2.5 cm
Package 1 width
7.0 cm
Package 1 length
12.0 cm
Package 1 weight
0.103 kg
