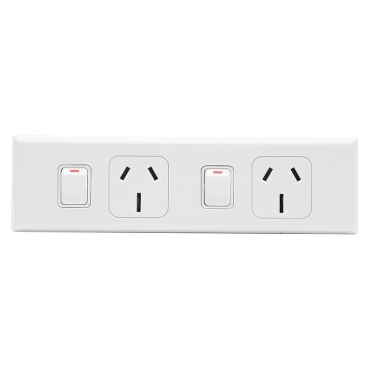

600 Series Double Switched Socket Worktop, Twin Base, 15A

600 Series Double Switched Socket Worktop, Twin Base, 15A | White

Item Number: PDL699TB15WH

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

600 Series

Product or component type

switched socket

Colour tint

white

Surface finish

gloss

Sustainable offer status

Green Premium product

Physical

Control type

rocker

Installation direction

horizontal

Length

167 mm

Height

45 mm

[ue] rated operational voltage

230/240 V 50 Hz

Device mounting

surface

Number of gangs

2 gangs

Fixing center

138 x 150 mm

Ambient air temperature for operation

-10...40 °C

Quantity per set

set of 5

Type of packing

carton

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP120506EN

Circularity profile

N/A

Material

Material

PC (polycarbonate)

Others

Package 1 bare product quantity

1

Dimension type

external

Cable cross section

3 x 2.5...2.5 mm²

Cut-out dimensions

50 mm

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

4.5 cm

Package 1 width

4.5 cm

Package 1 length

17 cm

Package 1 weight

0.132 kg
