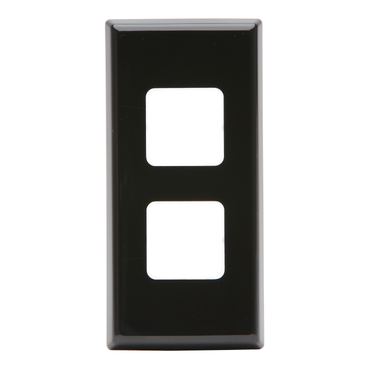

Black 1 PCE 1

Home ProductsSwitches and Sockets600 SeriesGrid + Cover Plate Worktop Switch

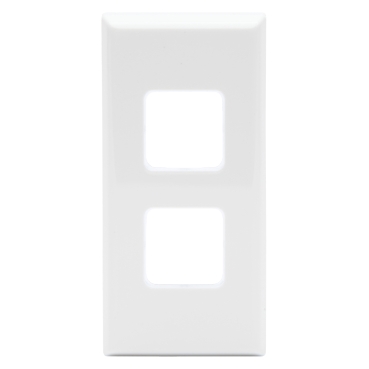

600 Series Grid + Cover Plate Worktop Switch 2-Gang | White

Item Number: PDL689VHWH

White 1 PCE 1
Black 1 PCE 1

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9416175083198	WH
10	BB1	9416175253539	WH
200	CAR	19416175083195	WH
1	PCE	9416175083150	BK
10	BB1	9416175253522	BK
30	CAR	19416175083157	BK

Specifications

Design

Range of product	600 Series
Product or component type	cover plate
Surface finish	glossy

Physical

Installation direction	horizontal vertical
Length	100 mm
Width	48 mm
Height	12.2 mm
Number of gangs	2 gangs
Device mounting	surface
Fixing center	80 mm
Ambient air temperature for operation	-10...40 °C
Quantity per set	set of 10 set of 200
Type of packing	carton
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2403019_V1-EN
Eu rohs directive	Compliant By Exemption

Material

Material	PC (polycarbonate)

Others

Legacy weee scope	Out
Package 1 bare product quantity	1
Average percentage of recycled plastic content	0 %
	Outside of Europe
Warranty duration(in months) bmecat	18
Weee label	N/A
Weee applicability	Component
Weee exclusion rationale	Component not in scope – non independent function
Main colour tint	white
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	2 cm
Package 1 width	4.5 cm
Package 1 length	10 cm
Package 1 weight	34 g
Total lifecycle carbon footprint	5 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.17379190031152647
Carbon footprint of the manufacturing phase [a1 to a3]	0.2 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.004446056074766355
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.009522118380062304
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	4.935
Carbon footprint of the use phase [b2, b3, b4, b6]	5 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.08534423676012459
Carbon footprint of the end-of-life phase [c1 to c4]	0.1 kg CO2 eq.
Pvc free	No
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	5.208104311526479
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
Pvc free	No
Take-back	No
Warranty (in months)	18
