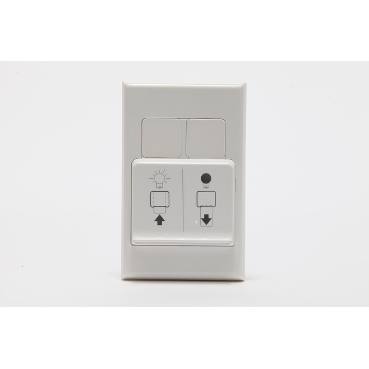

Specifications
Design
| Range of product | 600 Series |
|---|---|
| Product or component type | switch |
| Colour tint | white |
| Surface finish | gloss |
Physical
| Control type | switch |
|---|---|
| Installation direction | vertical |
| Length | 118 mm |
| Height | 74 mm |
| Rated current | 16 A |
| [ue] rated operational voltage | 230/250 V |
| Number of gangs | 1 gang |
| Number of poles | 2 |
| Mounting mode | surface mounted |
| Fixing center | 84 mm |
| Ambient air temperature for operation | -10...40 °C |
| Quantity per set | set of 5 |
| Type of packing | carton |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP2103014_V1 |
| Reach regulation | Reference contains Substances of Very High Concern above the threshold |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant By Exemption |
Material
| Material | PC (polycarbonate) |
|---|
