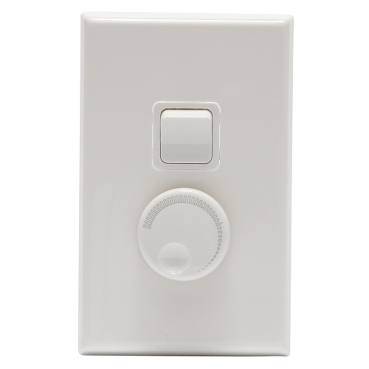

600 Series Light Dimmer Switch 20-450W Leading Edge Phase Control | WH
Item Number: PDL634LWH
Datasheet
Close
Specifications
Design
Range of product
600 Series
Product or component type
switch
Colour tint
white
Surface finish
gloss
Physical
Dimmer control
rotary push type
Installation direction
vertical
Length
118 mm
Width
74 mm
Rated current
16 AX|20 A
[ue] rated operational voltage
230/250 V
Number of gangs
1 gang
Number of poles
1
Mounting mode
surface mounted
Fixing center
84 mm
Ambient air temperature for operation
-10...40 °C
Quantity per set
set of 1
Type of packing
carton
Eu rohs directive
Pro-active compliance (Product out of EU RoHS legal scope)
Environmental disclosure
ENVPEP111278EN_V0
Material
Material
PC (polycarbonate)
Others
Package 1 bare product quantity
1
Network frequency
50 Hz
Power range
450 W|20 W
Load interrupting current
0.1 A|0.18 A
Network number of phases
1 phase
Cable cross section
2 x 2.5...2.5 mm²|4 x 1.5...1.5 mm²
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 weight
0.129 kg
Documents & downloads
hide showFilter items
-
All
-
Product Brochures
-

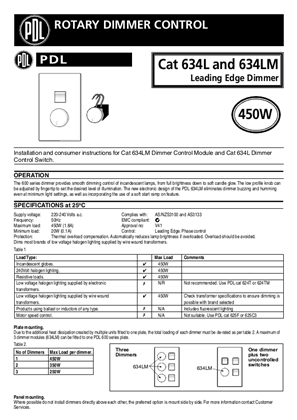

Operating Manuals
-

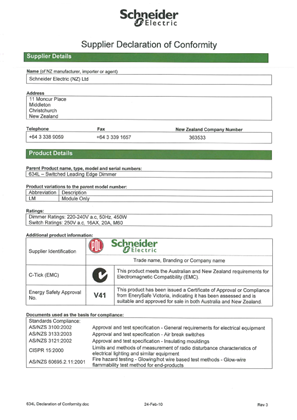

Declaration of Conformity
