600 Series Module Dimmer 20-450W Trailing Edge Control | White

Item Number: PDL624TMWH

White 1 PCE 1
Black 1 PCE 1

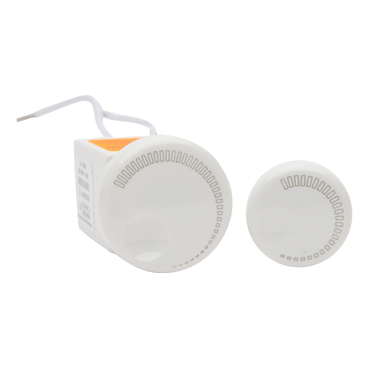

Dimmer module with rotary knob. Requires separate switch. 600 Series module. Suitable for PDL 600. Colour: White For universal load types. Operating voltage 240V a.c. 50Hz Note: Requires installation by an appropriately licenced electrician.

Where To Buy

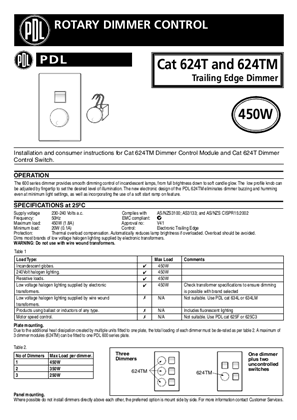

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9416175224355	WH
10	BB1	9416175257360	WH
200	CAR	19416175224352	WH
1	PCE	9416175224102	BK
10	BB1	9416175257353	BK
30	CAR	19416175224109	BK

Specifications

Design

Range of product	600 Series
Product or component type	switch
Surface finish	gloss

Physical

Dimmer control	rotary
Installation direction	vertical
Length	23 mm
Width	23 mm
Rated current	20 A 16 AX
[ue] rated operational voltage	220/240 V
Number of gangs	1 gang
Mounting mode	front
Ambient air temperature for operation	0...40 °C
Quantity per set	set of 10
Type of packing	carton
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2108010_V1
Eu rohs directive	Compliant

Material

Material	PC (polycarbonate)

Others

Legacy weee scope	In
Package 1 bare product quantity	1
Average percentage of recycled plastic content	0 %
	Outside of Europe
Warranty duration(in months) bmecat	18
Weee label	N/A
Weee applicability	Finished product
Network frequency	50 Hz
Power range	20 W 450 W
Load interrupting current	0.18 A 0.1 A
Motor m-rating as3133	M60
Network number of phases	1 phase
Main colour tint	white
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	7 cm
Package 1 width	4 cm
Package 1 length	10 cm
Package 1 weight	40 g
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	0 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.002351709844559585
Carbon footprint of the manufacturing phase [a1 to a3]	0 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.00000516089810017271
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	9.3022452504318e-7
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	3.65325
Carbon footprint of the use phase [b2, b3, b4, b6]	4 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.00001713022452504318
Carbon footprint of the end-of-life phase [c1 to c4]	0 kg CO2 eq.
Pvc free	Yes
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	0.004898765388601037
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
Pvc free	Yes
End of life manual availability	ENVEOLI2108010
Take-back	No
Warranty (in months)	18
