600 Series Module Dimmer Control 20-450W Leading Edge Phase Control

Home ProductsSwitches and Sockets600 SeriesModule Dimmer Control

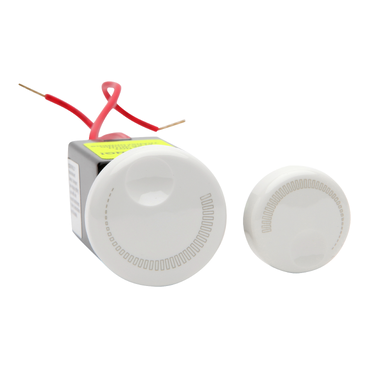

600 Series Module Dimmer Control 20-450W Leading Edge Phase Control | White

Item Number: PDL634LMWH

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-
See all

Specifications

Design

Range of product

600 Series

Product or component type

switch

Colour tint

white

Surface finish

gloss

Physical

Dimmer control

rotary

Installation direction

vertical

Length

23 mm

Width

23 mm

Rated current

  • 20 A
  • 16 AX

[ue] rated operational voltage

220/240 V

Number of gangs

1 gang

Number of poles

1

Mounting mode

front

Ambient air temperature for operation

0...40 °C

Quantity per set

set of 10

Type of packing

carton

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Material

Material

PC (polycarbonate)

Others

Legacy weee scope

In

Package 1 bare product quantity

1

Outside of Europe

Weee label

N/A

Network frequency

50 Hz

Power range

  • 20 W
  • 450 W

Load interrupting current

  • 0.18 A
  • 0.1 A

Motor m-rating as3133

M60

Network number of phases

1 phase

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

4 cm

Package 1 width

5.2 cm

Package 1 length

8 cm

Package 1 weight

42 g

Sustainable packaging

No

Warranty (in months)

18
Show all specifications
