600 Series Module ELV Tactile Switch 10mA at 24VDC, 50mA at 12VDC, 12/24VDC

Home ProductsSwitches and Sockets600 SeriesModule ELV Tactile Switch

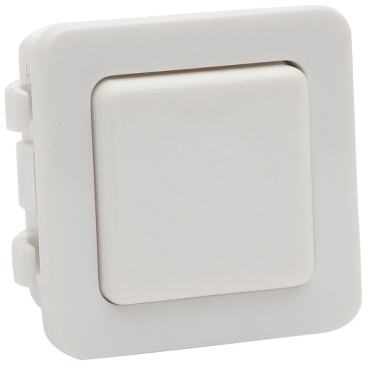

600 Series Module ELV Tactile Switch 10mA at 24VDC, 50mA at 12VDC, 12/24VDC | White

Item Number: PDL680TMPBWH

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-
See all

Specifications

Design

Range of product

600 Series

Product or component type

switch

Colour tint

white

Surface finish

gloss

Physical

Control type

push-button

Installation direction

  • vertical
  • horizontal

Width

23 mm

Height

23 mm

Rated current

  • 50 mA
  • 10 mA

[ue] rated operational voltage

  • 12 V
  • 24 V

Mounting mode

front

Quantity per set

set of 20

Type of packing

carton

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP120506EN

Eu rohs directive

Compliant with Exemptions

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Material

Material

PC (polycarbonate)

Others

Outside of Europe

Weee label

N/A

Package 1 bare product quantity

1

Legacy weee scope

In

Network type

DC

Contacts type and composition

NO

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

1.3 cm

Package 1 width

2.3 cm

Package 1 length

2.3 cm

Package 1 weight

5 g

Sustainable packaging

No

End of life manual availability

N/A

Warranty (in months)

18
