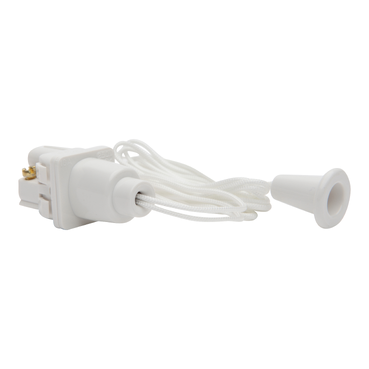

600 Series Module Pull Cord Switch 16A 16AX 1P, White

600 Series Module Pull Cord Switch 16A 16AX 1P, White

Item Number: PDL681M16PS

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

600 Series

Product or component type

switch

Colour tint

white

Surface finish

gloss

Physical

Installation direction

<ul><li>horizontal</li><li>vertical</li></ul>

Rated current

16 AX

[ue] rated operational voltage

250 V

Number of poles

1

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Material

Material

PC (polycarbonate)

Others

Commercial status history

<ul><li>SESA301466</li><li>Tue Jan 16 00:44:00 EST 2024</li><li>From Import Local</li><li>From 18 to 19</li></ul>

Package 1 bare product quantity

1

Network type

AC

Motor m-rating as3133

M50

Cable cross section

<ul><li>2 x 2.5...2.5 mm²</li><li>4 x 1.5...1.5 mm²</li></ul>

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

2.5 cm

Package 1 width

8 cm

Package 1 length

12 cm

Package 1 weight

24 g

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

Take-back

No

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A
