600 Series Module Switch 20A, 16AX, GAS

Home ProductsSwitches and Sockets600 SeriesModule Switch

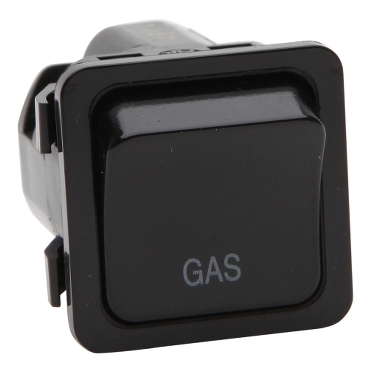

600 Series Module Switch 20A, 16AX, GAS | Black

Item Number: PDL681M20GBK

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-
See all

Specifications

Design

Range of product

600 Series

Product or component type

switch

Colour tint

white

Surface finish

gloss

Physical

Control type

rocker

Installation direction

  • vertical
  • horizontal

Length

23 mm

Width

23 mm

Depth

26 mm

Rated current

  • 16 AX
  • 20 A

[ue] rated operational voltage

250 V

Number of gangs

1 gang

Number of poles

1

Mounting mode

front

Ambient air temperature for operation

-10...40 °C

Mercury free

Yes

Rohs exemption information

Yes

Eu rohs directive

Compliant with Exemptions

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Material

Material

PC (polycarbonate)

Others

Legacy weee scope

In

Weee label

N/A

Outside of Europe

Package 1 bare product quantity

1

Network type

AC

Motor m-rating as3133

M60

Network number of phases

1 phase

Cable cross section

  • 2 x 2.5...2.5 mm²
  • 4 x 1.5...1.5 mm²

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

2.5 cm

Package 1 width

2.5 cm

Package 1 length

3 cm

Package 1 weight

0.014 kg

Sustainable packaging

No

Warranty (in months)

18
