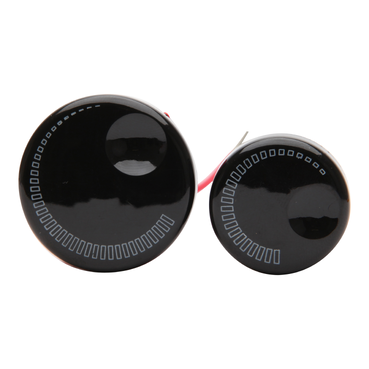

600 Series Module Universal Dimmer Rotary Switch, 450W Leading/Trailing

600 Series Module Universal Dimmer Rotary Switch, 450W Leading/Trailing | Black

Item Number: PDL654MBK

Dimmer module with rotary knob. Requires separate switch. 600 Series module. Suitable for PDL 600. Colour: White For universal load types. Operating voltage 240V a.c. 50Hz Note: Requires installation by an appropriately licenced electrician.

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

600 Series

Product or component type

switch

Colour tint

white

Surface finish

gloss

Sustainable offer status

Green Premium product

Physical

Dimmer control

rotary

Installation direction

vertical

Length

23 mm

Width

23 mm

Rated current

16 AX

[ue] rated operational voltage

220/240 V

Mounting mode

front

Ambient air temperature for operation

0...40 °C

Relative humidity

10...90 %

Quantity per set

set of 10

Type of packing

carton

Reach regulation

Free of Substances of Very High Concern above the threshold

Reach free of svhc

Yes

Eu rohs directive

Compliant

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Environmental disclosure

ENVPEP1708008EN

Circularity profile

ENVEOLI1708008EN

Material

Material

PC (polycarbonate)

Others

Package 1 bare product quantity

1

Network frequency

50 Hz

Power range

450 W|20 W

Load interrupting current

0.18 A|0.1 A

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

3 cm

Package 1 width

8 cm

Package 1 length

11 cm

Package 1 weight

43 g
