600 Series Module USB Charger 1.2A Output 80mA Input

White 1 PCE 1
Black 1 PCE 1

Home ProductsSwitches and Sockets600 SeriesModule USB Charger

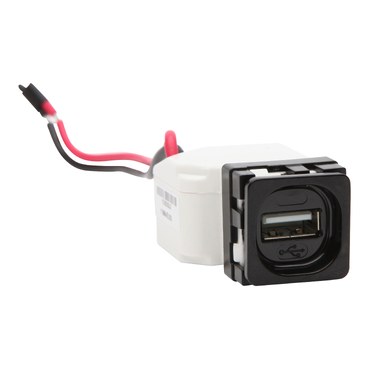

600 Series Module USB Charger 1.2A Output 80mA Input | Black

Item Number: PDL642MUSBBK

White 1 PCE 1
Black 1 PCE 1

Datasheet

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9416175239472	WH
5	BB1	9416175239540	WH
10	CAR	19416175239479	WH
1	PCE	9416175239489	BK
5	BB1	9416175239557	BK
10	CAR	19416175239486	BK

Specifications

Design

Range of product	600 Series
Product or component type	socket-outlet with USB charger
Colour tint	white
Surface finish	gloss

Physical

Installation direction	horizontal vertical
Length	23 mm
Width	23 mm
Output current	1.2 A
[ue] rated operational voltage	230/240 V
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2202012_V1
Reach regulation	Reference contains Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant

Material

Material	PC (polycarbonate)

Others

Legacy weee scope	In
Package 1 bare product quantity	1
Package 2 bare product quantity	5
Package 3 bare product quantity	50
Average percentage of recycled plastic content	0 %
	Outside of Europe
Warranty duration(in months) bmecat	18
Weee label	N/A
Weee applicability	Finished product
Input current	80 mA
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	2.5 cm
Package 1 width	10 cm
Package 1 length	11 cm
Package 1 weight	44 g
Unit type of package 2	BB1
Number of units in package 2	5
Package 2 height	7.7 cm
Package 2 width	12 cm
Package 2 length	19.5 cm
Package 2 weight	620 g
Unit type of package 3	CAR
Number of units in package 3	50
Package 3 height	24 cm
Package 3 width	29 cm
Package 3 length	33 cm
Package 3 weight	6.62 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	0 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.0015109798339264528
Carbon footprint of the manufacturing phase [a1 to a3]	0 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.00000567876631079478
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.00000144380545670225
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	81.54894409937887
Carbon footprint of the use phase [b2, b3, b4, b6]	82 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.00001214567022538553
Carbon footprint of the end-of-life phase [c1 to c4]	0 kg CO2 eq.
Pvc free	Yes
Halogen-free status	Product contains halogen above thresholds
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	0.04409434701272444
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
China rohs label	1
Halogen-free status	Product contains halogen above thresholds
Pvc free	Yes
End of life manual availability	ENVEOLI2202012
Take-back	No
Warranty (in months)	18
