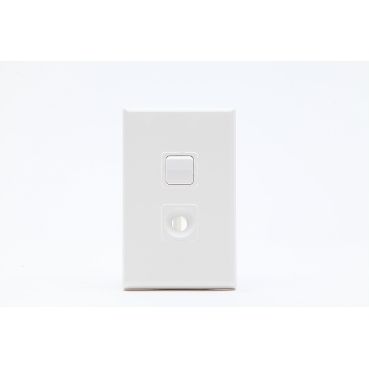

600 Series Permanent Connection Unit Switched 20A 20AX

600 Series Permanent Connection Unit Switched 20A 20AX | WH

Item Number: PDL651WH

Permanent connection unit. Suitable for PDL 600. Colour: White Rated current: 16AX. Operating voltage 250V a.c. 50Hz. Note: Requires installation by an appropriately licenced electrician.

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

600 Series

Product or component type

socket

Colour tint

white

Surface finish

gloss

Physical

Installation direction

vertical

Width

74 mm

Height

118 mm

[ue] rated operational voltage

230/240 V

Number of gangs

1 gang

Number of poles

1

Mounting mode

surface mounted

Fixing center

84 mm

Ambient air temperature for operation

-10...40 °C

Connections - terminals

screw terminal

Quantity per set

set of 10

Type of packing

carton

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Material

Material

PC (polycarbonate)

Others

Package 1 bare product quantity

1

Network frequency

50 Hz

Motor m-rating as3133

M60

Network number of phases

1 phase

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

3 cm

Package 1 width

7.5 cm

Package 1 length

12 cm

Package 1 weight

83 g
