600 Series Quad Switched Socket 10A Horizontal 4-Gang | Black
Item Number: PDL644BK

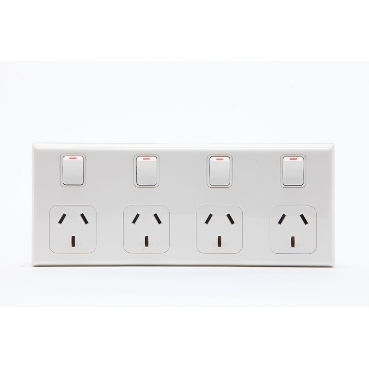

Socket outlet assembly for horizontal installations. Quad switched socket. 600 Series cover and socket grid are included. PDL 600. Colour: White Rated current: 10A. Operating voltage 240V a.c. 50Hz Note: Requires installation by an appropriately licenced electrician.
Datasheet
Specifications
Design
| Range of product | 600 Series |
|---|---|
| Product or component type | switched socket |
| Surface finish | gloss |
Physical
| Control type | rocker |
|---|---|
| Installation direction | horizontal |
| Width | 191 mm |
| Height | 79 mm |
| [ue] rated operational voltage | 230/240 V 50 Hz |
| Device mounting | surface |
| Number of gangs | 4 gangs |
| Fixing center | 84 mm |
| Ambient air temperature for operation | -10...40 °C |
| Quantity per set | set of 5 |
| Type of packing | carton |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP120506EN |
| Reach regulation | Reference contains Substances of Very High Concern above the threshold |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant By Exemption |
Material
| Material | PC (polycarbonate) |
|---|
