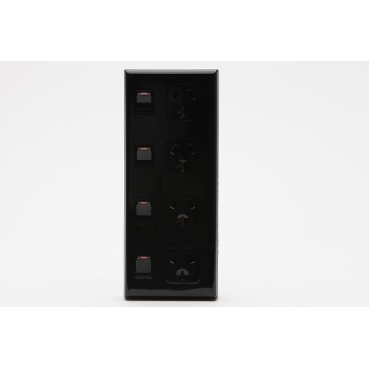

600 Series Quad Switched Socket 10A Vertical 4-Gang | Black
Item Number: PDL641BK
Socket outlet assembled for vertical installations. Quad switched socket. 600 Series cover and socket grid are included. PDL 600. Colour: White Rated current: 10A. Operating voltage 240V a.c. 50Hz. Note: Requires installation by an appropriately licenced electrician.
Datasheet
Specifications
Design
| Range of product | 600 Series |
|---|---|
| Product or component type | socket-outlet |
| Surface finish | gloss |
Physical
| Control type | rocker |
|---|---|
| Installation direction | vertical |
| Width | 81 mm |
| Height | 194 mm |
| Rated current | 10 A |
| [ue] rated operational voltage | 230/240 V |
| Number of gangs | 4 gangs |
| Mounting mode | surface mounted |
| Fixing center | 84 mm |
| Ambient air temperature for operation | -10...40 °C |
| Quantity per set | set of 5 |
| Type of packing | carton |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP120506EN_V2 |
| Eu rohs directive | Compliant By Exemption |
Material
| Material | PC (polycarbonate) |
|---|
Documents & downloads
-
All
-
Product Brochures
-
Certificates (MSDS)
-

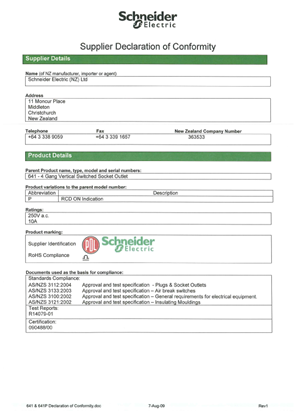

Declaration of Conformity
-
