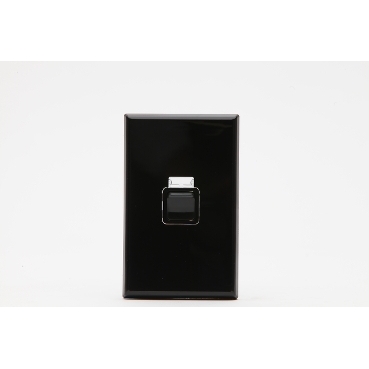

600 Series Range Switch 1-Way 32A 20AX 1-Pole | Black
Item Number: PDL680BK

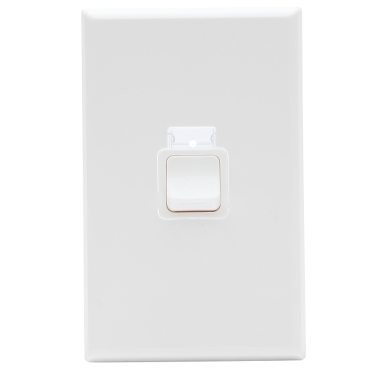

Switch assembly. 600 series cover plate, grid and switch mechanism are included. Suitable for 1-gang vertical installations. Assembled with plate. PDL 600. Colour: White Rated current: 32A / 20AX. Operating voltage 250V a.c. 50Hz Note: Requires installation by an appropriately licenced electrician.
Datasheet
Specifications
Design
| Range of product | 600 Series |
|---|---|
| Product or component type | switch |
| Surface finish | gloss |
Physical
| Control type | rocker |
|---|---|
| Installation direction |
|
| Length | 118 mm |
| Width | 74 mm |
| Rated current |
|
| [ue] rated operational voltage | 250 V |
| Number of gangs | 1 gang |
| Number of poles | 1 |
| Mounting mode | surface mounted |
| Fixing center | 84 mm |
| Ambient air temperature for operation | -10...40 °C |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP2108010_V1 |
| Reach regulation | Reference contains Substances of Very High Concern above the threshold |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant By Exemption |
Material
| Material | PA (polyamide) |
|---|
