Specifications
Design
Range of product
600 Series
Product or component type

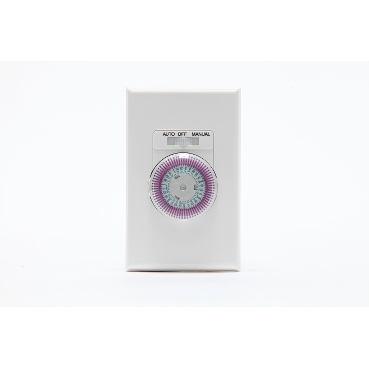

time switch
Colour tint
white
Surface finish
gloss
Sustainable offer status
Green Premium product
Physical
Control type
rotary
Installation direction
vertical
Length
118 mm
Width
74 mm
Rated current
8 AX|16 A
[ue] rated operational voltage
230/240 V
Number of gangs
1 gang
Mounting mode
surface mounted
Fixing center
84 mm
Ambient air temperature for operation
-10...40 °C
Ip degree of protection
IP3x
Quantity per set
set of 1
Type of packing
carton
Eu rohs directive
Compliant with Exemptions
Mercury free
Yes
Rohs exemption information
Yes
China rohs regulation
X
Environmental disclosure
ENVPEP1308010EN
Circularity profile
ENVEOLI1308010EN
Material
Material
PC (polycarbonate)
Others
Package 1 bare product quantity
1
Nominal power
1.35 kW
Network frequency
50 Hz
Number of ways
1 way
Cable cross section
2 x 2.5...2.5 mm²|4 x 1.5...1.5 mm²
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
7.0 cm
Package 1 width
7.5 cm
Package 1 length
12.0 cm
Package 1 weight
0.159 kg
Documents & downloads
hide showFilter items
-
All
-
Product Brochures
-

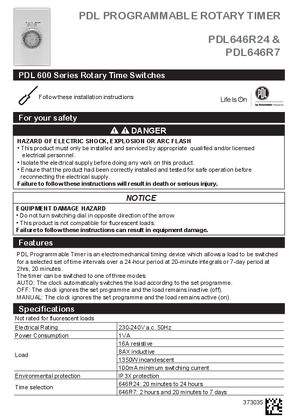

Installation Instruction
-
