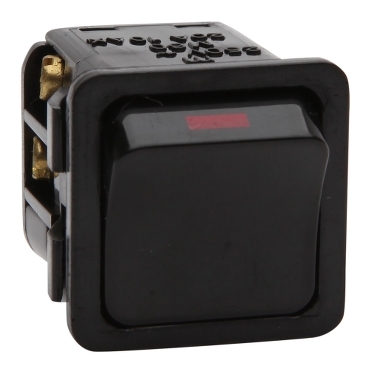

600 Series Switch Module 10A 2-Pole

600 Series Switch Module 10A 2-Pole | Black

Item Number: PDL687M10BK

Switch mechanism. Double-pole switch. Suitable for 1-gang installations. 600 Series mechanism. PDL 600. Colour: White Rated current: 10A. Operating voltage 250V a.c. 50Hz Note: Requires installation by an appropriately licenced electrician.

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

600 Series

Product or component type

switch

Colour tint

white

Surface finish

gloss

Sustainable offer status

Green Premium product

Physical

Control type

rocker

Installation direction

horizontal|vertical

Length

23 mm

Width

23 mm

Depth

26 mm

Rated current

16 A|8 AX

[ue] rated operational voltage

250 V

Number of gangs

1 gang

Number of poles

2

Mounting mode

front

Ambient air temperature for operation

-10...40 °C

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP1607003EN

Circularity profile

N/A

Material

Material

PC (polycarbonate)

Others

Package 1 bare product quantity

1

Network type

AC

Motor m-rating as3133

M40

Network number of phases

2 phases

Cable cross section

2 x 2.5...2.5 mm²|4 x 1.5...1.5 mm²

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

2.5 cm

Package 1 width

2.5 cm

Package 1 length

3 cm

Package 1 weight

19 g
Show all specifications
