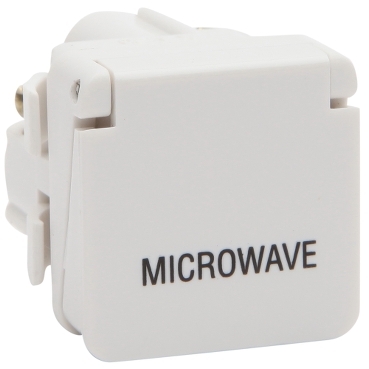

600 Series Switch Module 2-Way 16A 1P + Lid M/WAVE | White
Item Number: PDL681M16HFMWWH
Datasheet
Close
Specifications
Design
Range of product
600 Series
Product or component type
switch
Colour tint
white
Surface finish
gloss
Physical
Control type
rocker
Installation direction
- horizontal
- vertical
Rated current
- 16 AX
- 8 AX
- 16 A
[ue] rated operational voltage
230/240 V
Number of poles
1
Mercury free
Yes
Rohs exemption information
Yes
Environmental disclosure
ENVPEP120506EN
Eu rohs directive
Compliant with Exemptions
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Material
Material
PC (polycarbonate)
Others
Legacy weee scope
In
Package 1 bare product quantity
1
Outside of Europe
Weee label
N/A
Network type
AC
Motor m-rating as3133
M50
Cable cross section
- 2 x 2.5...2.5 mm²
- 4 x 1.5...1.5 mm²
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
2.5 cm
Package 1 width
2.5 cm
Package 1 length
3.2 cm
Package 1 weight
0.015 kg
Sustainable packaging
No
End of life manual availability
N/A
Warranty (in months)
18
