600 Series Switched Socket 10A, Horizontal, 250V

Home ProductsSwitches and Sockets600 SeriesSwitched Socket

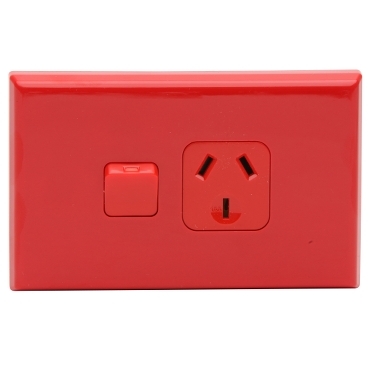

600 Series Switched Socket 10A, Horizontal, 250V | Red

Item Number: PDL694RD

Socket outlet assembly for horizontal installations. Single switched socket. 600 Series cover and socket grid are included. PDL 600. Colour: White Rated current: 10A. Operating voltage 250V a.c. 50Hz. Note: Requires installation by an appropriately licenced electrician.

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

600 Series

Product or component type

switched socket

Colour tint

white

Surface finish

gloss

Physical

Socket number

1

Control type

rocker

Installation direction

horizontal

Width

118 mm

Height

74 mm

[ue] rated operational voltage

250 V 50 Hz

Device mounting

surface

Number of gangs

1 gang

Fixing center

84 mm

Ambient air temperature for operation

-10...40 °C

Quantity per set

set of 10

Type of packing

carton

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP120506EN

Eu rohs directive

Compliant with Exemptions

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Material

Material

PC (polycarbonate)

Others

Legacy weee scope

In

Package 1 bare product quantity

1

Average percentage of recycled plastic content

0 %

Outside of Europe

Weee label

N/A

Weee applicability

Finished product

Cable cross section

3 x 2.5...2.5 mm²

Cut-out dimensions

50 mm

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

2.5 cm

Package 1 width

7.5 cm

Package 1 length

12.0 cm

Package 1 weight

0.085 kg

Green premium status for reporting

Green Premium product

Total lifecycle carbon footprint

0.7 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

0.4160488894080219

Carbon footprint of the manufacturing phase [a1 to a3]

0.4 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.015720925041569557

Carbon footprint of the distribution phase [a4]

0 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.002846405946012524

Carbon footprint of the installation phase [a5]

0 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

0.1056339273201361

Carbon footprint of the use phase [b2, b3, b4, b6]

0.1 kg CO2 eq.

Sustainable packaging

No

Carbon footprint of the end-of-life phase [c1 to c4]

0.2073227766220383

Carbon footprint of the end-of-life phase [c1 to c4]

0.2 kg CO2 eq.

Pvc free

No

Halogen-free status

Halogen free product

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

0.7475729243377784

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

Halogen-free status

Halogen free product

Pvc free

No

End of life manual availability

N/A

Take-back

No

Warranty (in months)

18
Show all specifications
