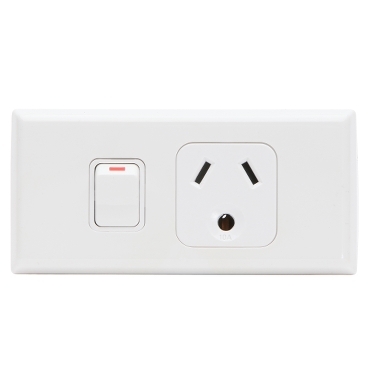

600 Series Switched Socket Outlet Round Earth, Single, Worktop, 10A, 250VAC | White
Item Number: PDL698RWH
Datasheet
Close
Specifications
Design
Range of product
600 Series
Product or component type
switched socket
Colour tint
white
Surface finish
gloss
Physical
Control type
rocker
Installation direction
horizontal
Length
97 mm
Height
45 mm
[ue] rated operational voltage
230/240 V 50 Hz
Device mounting
surface
Number of gangs
1 gang
Ambient air temperature for operation
-10...40 °C
Quantity per set
set of 5
Type of packing
carton
Mercury free
Yes
Rohs exemption information
Yes
Environmental disclosure
ENVPEP120506EN
Eu rohs directive
Compliant with Exemptions
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Material
Material
PC (polycarbonate)
Others
Legacy weee scope
In
Package 1 bare product quantity
1
Outside of Europe
Weee label
N/A
Dimension type
external
Cable cross section
3 x 2.5...2.5 mm²
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 weight
0.069 kg
Sustainable packaging
No
End of life manual availability
N/A
Warranty (in months)
18
