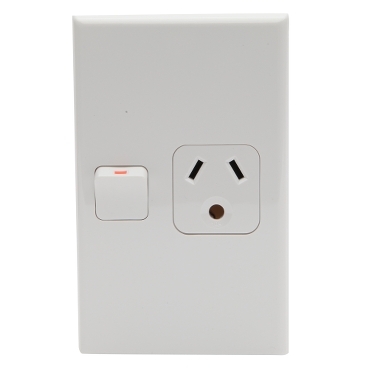

600 Series Switched Socket Round Earth, Vertical, 10A

600 Series Switched Socket Round Earth, Vertical, 10A | White

Item Number: PDL691RWH

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product 600 Series
Product or component type switched socket
Colour tint white
Surface finish gloss

Physical

Control type rocker
Installation direction vertical
Width 118 mm
Height 74 mm
[ue] rated operational voltage 250 V 50 Hz
Device mounting surface
Number of gangs 1 gang
Fixing center 84 mm
Ambient air temperature for operation -10...40 °C
Quantity per set set of 5
Type of packing carton
Mercury free Yes
Rohs exemption information Yes
Environmental disclosure ENVPEP120506EN
Eu rohs directive Compliant By Exemption

Material

Material PC (polycarbonate)

Others

Legacy weee scope In
Package 1 bare product quantity 1
Outside of Europe
Weee label N/A
Cable cross section 3 x 2.5...2.5 mm²
Cut-out dimensions 50 mm
Unit type of package 1 PCE
Number of units in package 1 1
Package 1 height 3.0 cm
Package 1 width 7.5 cm
Package 1 length 12.0 cm
Package 1 weight 0.084 kg
Sustainable packaging No
End of life manual availability N/A
Warranty (in months) 18

Frequently Asked Questions

What is the part number for a cover plate to suit the PL691RCD30WH and PDL691RCD10WH?

Hide Show

The cover plate can be ordered with part number PDL691RCDCWH

What is the replacement alternative for PDL391RCD30-VW?

Hide Show

There is no direct replacement alternative for PDL391RCD30-VW.

The closest option customer may consider for a single vertical 30mA RCD Socket would be PDL691RCD30WH.

See below link for further information.

PDL691RCD30WH - Switched Socket, 600 Series, 10A RCD 30mA Trip | Schneider Electric New Zealand

PDL691RCD30WH
